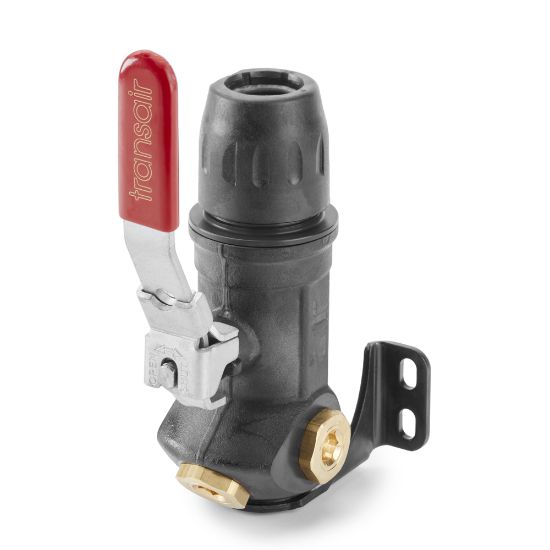

Parker 6637 25 21 - Transair® Wall Brackets for Aluminum Pipe

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6637 25 21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Assembly Time	0.15 Hours	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Technology	Fluid & Gas Handling	Assembly	n/a
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Application	Inert Gases	Specifications Met	ASME B31.1 - 31.9
Maximum Operating Temperature	185 °F	For Fluid Type	Air
Connection 1 Type	Pipe	Connection 2 Type	Female BSPP
Body Material	Technical Polymer	Quantity per Box	2
Configuration	Pipe to Port	Connection 1 Size	25 mm
Weight	3,816 lb	Product Type	Wall Brackets
Connection 2 Size	G 1/2 inch	Maximum Operating Pressure	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c
Connection 3 Size	G 1/4 inch	Connection 3 Type	Female BSPP
Pipe O.D. (mm)	25	Pipe O.D. (inch)	1
Connection Thread Size (inch)	n/a	Shape	3 port Wall Bracket with Ball Valve
