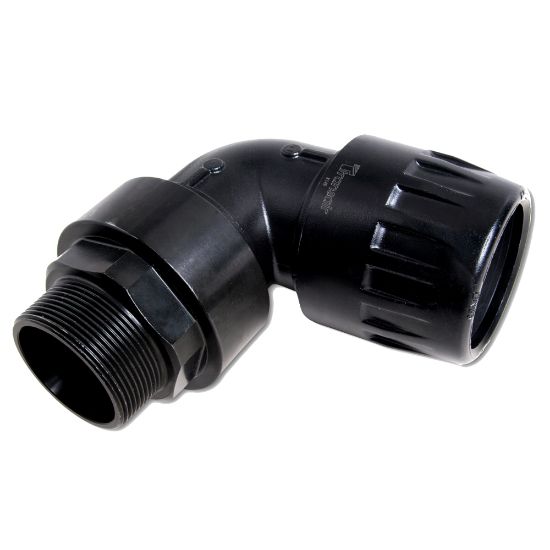

Parker 6609 50 48 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6609 50 48

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Application	Compressed Air
Body Material	Treated Aluminum	Specifications Met	EN 755.2
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	232 psi
Maximum Operating Temperature	185 °F	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Shape	Elbow 90°	Weight	0.834 kg
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Product Style	Stud Fitting	Connection 1 Size	2 inch
Connection 2 Size	R 2 inch	Connection 2 Type	Male BSPT
Pipe O.D. (mm)	50	Pipe O.D. (inch)	2
Connection Thread Size (inch)	2	Silicone Free	Yes
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A
