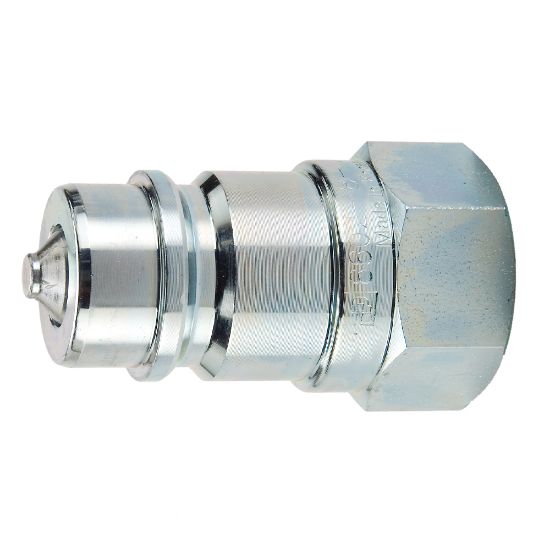

Parker 6602-12-10 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6602-12-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Product Type	Manual Connect
Body Material	Steel	Valve Type	Poppet
Maximum Operating Pressure	4000 psi	Dimensional Weight	0.05341726618705036 lb
Flow Rate	12 Gal/min	Application	General Purpose
Hex Size	1.38 inch	Specifications Met	ISO 7241-1 Series A
Interchange Type	ISO 7241-1 Series A	Body Size (inch)	1/2
Coupling Half	Male Nipple	Connection Type	Female NPTF
Connection Thread Size (inch)	3/4 - 14
