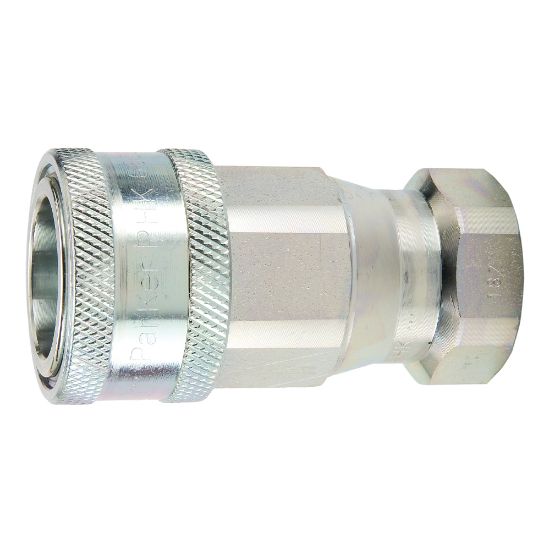

Parker 6601-4-4Y - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6601-4-4Y

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Plating Type	Zinc with clear trivalent chromate	Product Type	Manual Connect
Body Material	Steel	Seal Material	Fluorocarbon
Application	Hydraulics	Maximum Operating Pressure	5000 psi
Minimum Operating Temperature	-15 °F	Valve Type	Poppet
Hex Size	0.88 inch	Flow Rate	3 Gal/min
Specifications Met	ISO 7241-1 Series A	Interchange Type	ISO 7241-1 Series A
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Connection Type	Female NPTF	Body Size (inch)	1/4"
