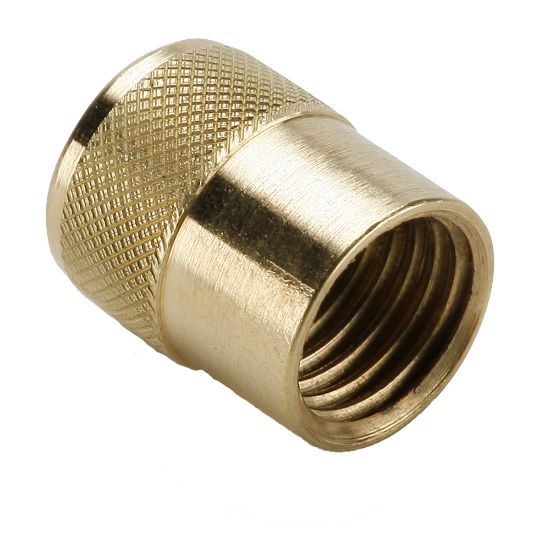

Parker 640QSF-4 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 640QSF-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	220 °F	Nut Material	Brass
Maximum Operating Pressure	34 bar	Minimum Operating Temperature	-20 °F
Specifications Met	Valve Core Meets ARI Standard 720	Body Material	Brass
Division	Fluid System Connectors Division	Media	Fluorocarbon Refrigerants
Connection 2 Style	na	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 2 Solder O.D. (inch)	na
Style	Flare Cap	Connection 1 Tube O.D. (inch)	1/4
Connection 1 Style	SAE Male Flare	Shape	Quick Seal Cap
