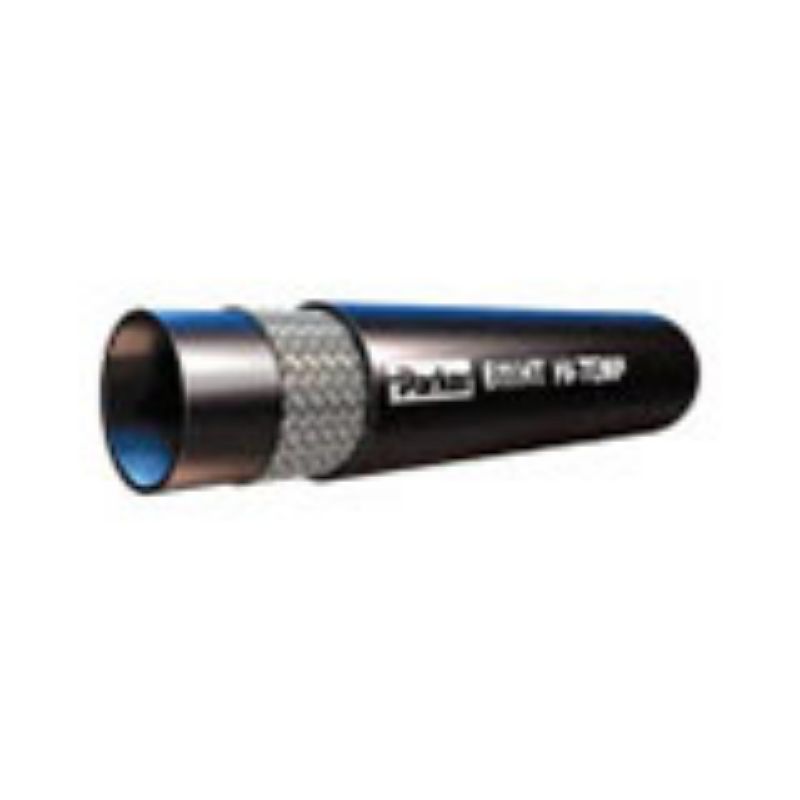

Parker 611HT-10 - High Temperature Transportation Hose 300-400 PSI – 611HT Hose

Parker's 611HT hose is a transportation hose that has a working pressure range of 300-400 PSI which is designed for high temperature applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 611HT-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	150 °C
Outside Diameter	0.880 inch	Application	Lubricating Oils
Maximum Operating Pressure	2.4 MPa	Hose Reinforcement Material	1 Braid of Fiber
Media	Fuels - Check fuel type with our catalogue chart.	Hose Inner Tube Material	PKR® Rubber
Compatible Fitting	HY Series	Weight	0.19 lb/ft
Specifications Met	EN 854, Type R6	Minimum Operating Temperature	-55 °F
Cover Material	Synthetic Rubber MSHA approved	Hose Cover Type	Synthetic Rubber MSHA Accepted
Inside Diameter	15.7 mm	Minimum Bend Radius	125 mm
Nominal Hose Inside Diameter	15 mm	Hose Inside Diameter	-10

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
