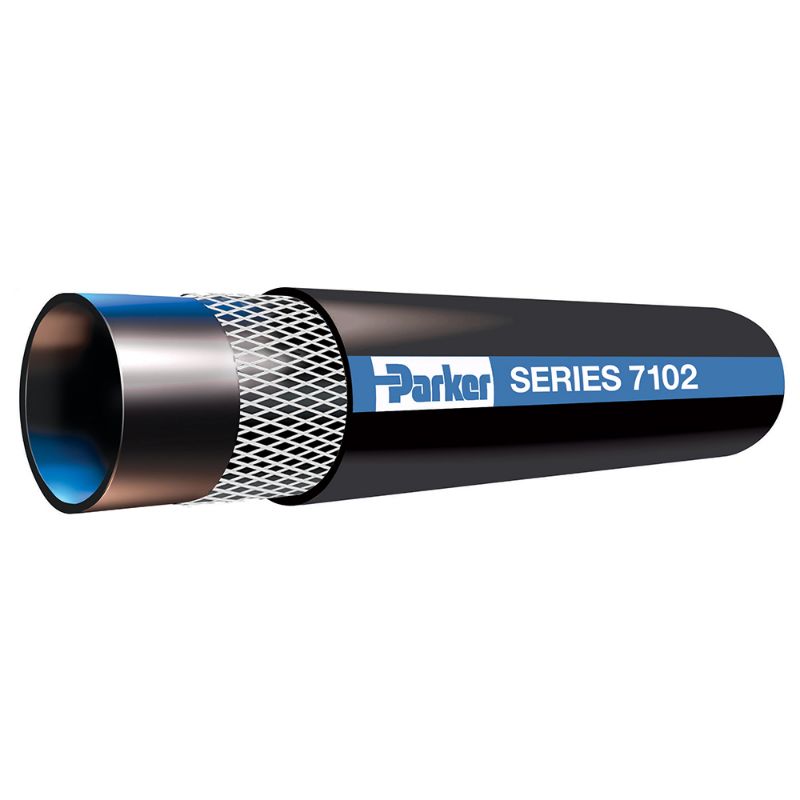

Parker 7102-150304 - ARCTIC EDGE™ Low Temperature Multipurpose Oil Resistant Hose, Series 7102

Arctic Edge Low Temperature Oil Resistant Multipurpose Rubber Hose is designed to transfer air, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to -70°F and 300 psi, Series 7102

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7102-150304

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-70 °F	Maximum Operating Temperature	100 °C
Division	Hose Products Division	Minimum Bend Radius	10 inch
Hose Inner Tube Material	Black	Cover Color	Black
Hose Reinforcement Material	4 Plies of Textile with Static Wire	Compatible Fitting	43 Series
Media	Fuels (Biodiesel to B20 in dedicated service)	Application	Multipurpose
Package Type	Reel	Specifications Met	N/A
Weight	0.42 kg	Maximum Operating Pressure	20.7 bar
Length per Package	200 ft	Inside Diameter	1-1/2 inch
Outside Diameter	51.6 mm	Cover Material	Chloroprene Rubber (CR)
Maximum Working Pressure (psi)	300	Hose I.D. (inch)	1-1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
