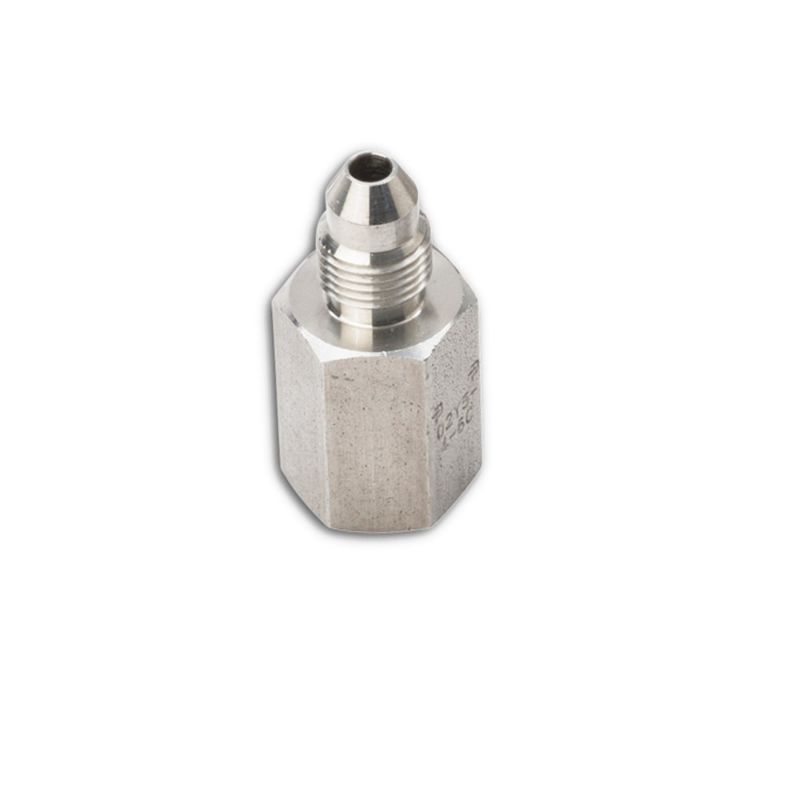

Parker 5YY5-12-6C - Medium Pressure Adapters

Medium Pressure adapters have a 58/60 degree coned and threaded tubing design with a maximum working pressure rating of 20,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 5YY5-12-6C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Connection 2 Type	Male
Connection 1 Size	3/4"-14	Connection 1 Type	Female
Hex Size	1.37	Overall Length	2.37
Connection 2 Size	9/16"-18	Materials of Construction	Stainless Steel AISI 316
Maximum Operating Pressure	20000	Connection 2 Type	Male Medium Pressure
Connection 1 Tube Outside Diameter	3/4" (O.D.)	Connection 2 Tube Outside Diameter	3/8" (O.D.)
Connection 1 Type	Female Medium Pressure
