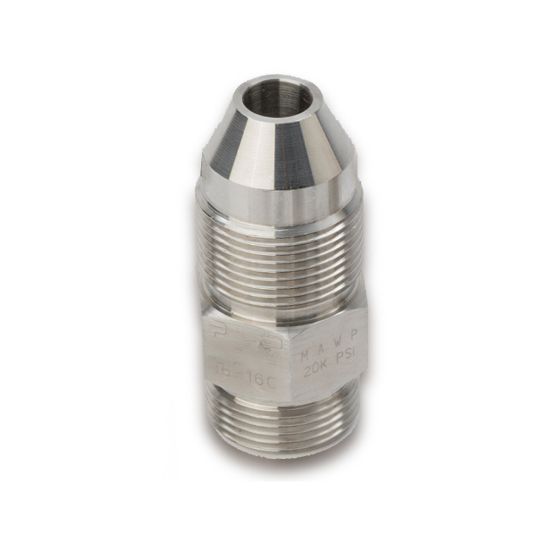

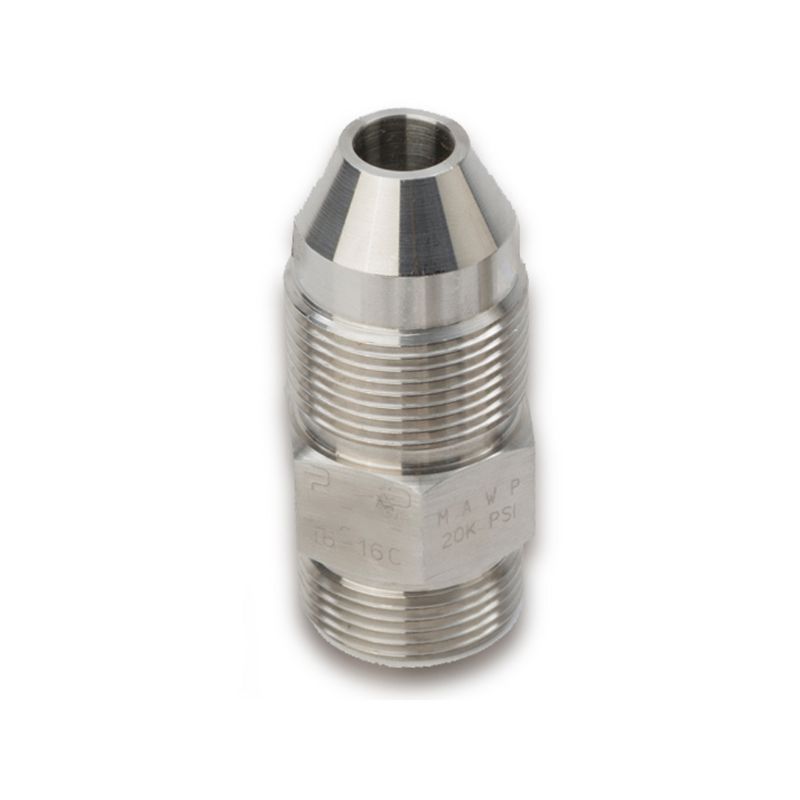

Parker Y5D9-6-6C - Medium Pressure Adapters

Medium Pressure adapters have a 58/60 degree coned and threaded tubing design with a maximum working pressure rating of 20,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Y5D9-6-6C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 2 Size	G 3/8"-19	Connection 1 Type	Male
Overall Length	1.66	Division	Parflex Division
Connection 2 Type	Male	Maximum Operating Pressure	20000
Materials of Construction	Stainless Steel AISI 316	Hex Size	0.875
Connection 1 Size	9/16"-18	Connection 2 Type	Male BSP
Connection 1 Type	Male Medium Pressure	Connection 1 Tube Outside Diameter	3/8" (O.D.)
Connection 2 Tube Outside Diameter	0.656" (O.D.)
