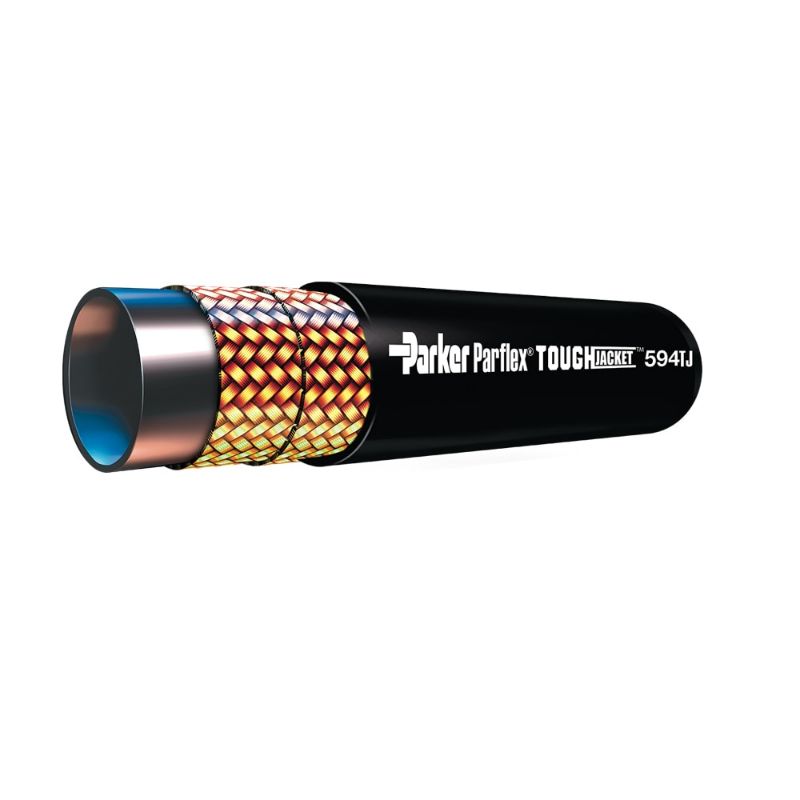

Picture of Parker 594TJ-6 - 100R19 Hose - 594TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 594TJ-6 - 100R19 Hose - 594TJ

The 594TJ TOUGHJACKET™ 4,000 PSI HOSE is a 4,000 psi hose featuring maximum abrasion resistance. Meets SAE 100R19. Available in long, continuous lengths and as bonded hose and/or formed hose assembly.
AFP Availability:
Quote Required
Partner Available:681 In Stock
Brand Parker
Part No. 594TJ-6
$5.20/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMinimum Bend Radius2-1/2 inch
Cover MaterialPolyurethaneSpecifications MetSAE 100R19
Hose Reinforcement MaterialBraid of High Tensile Steel WireWeight0.28 kg/m
Maximum Operating Pressure4061 psiOutside Diameter26.4 mm
Inside Diameter10 mmDivisionParflex Division
Maximum Operating Temperature100 °CMediaLubricants (Oils)
Compatible Fitting56 SeriesHose Cover TypeToughJACKET™
Size-6Hose Inner Tube MaterialCopolyester
Design Factor4:1Minimum Operating Temperature-40 °C
ApplicationLubricating OilsHose I.D. (inch)3/8
