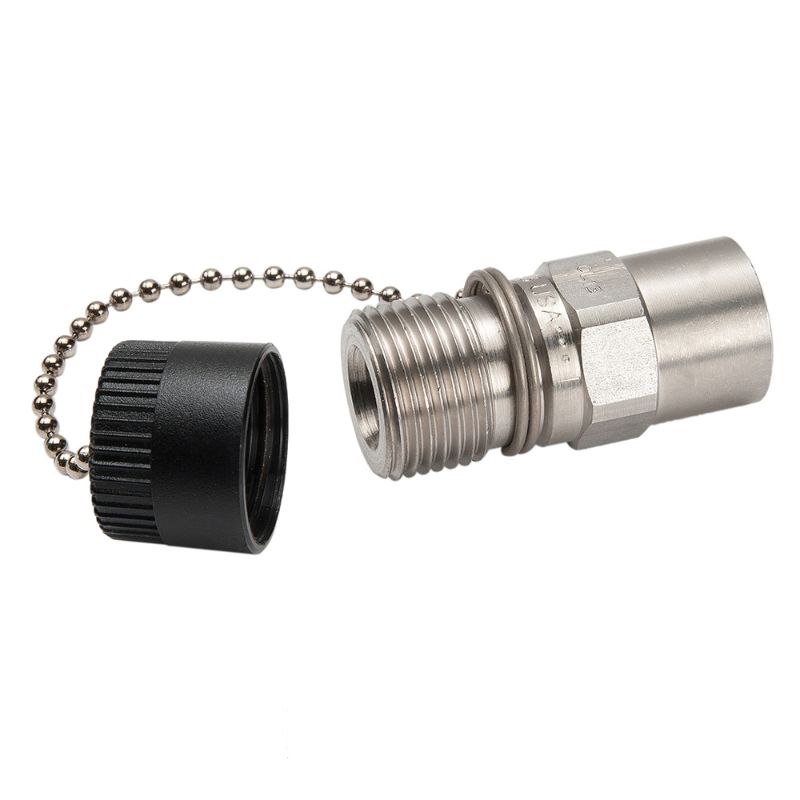

Parker 1141-63 - Connect Under Pressure Stainless Quick Couplings - 1141 Series

Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	120 In Stock

Brand Parker

Part No. 1141-63

$105.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	10000 psi
Division	Quick Coupling Division	Maximum Operating Temperature	180 °F
Hex Size	0.88	Body Size	1/4 inch
Valve Type	Poppet	Application	High Pressure Hydraulics
Product Type	Thread to Connect	Body Material	Stainless Steel 303
Seal Material	Polyurethane	Connection Type	Female NPTF
Maximum Flow Rate	3 Gal/min	Connection Thread Size	1/4"-18 inch
Minimum Operating Temperature	-30 °F	Coupling Half	Male Nipple

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
