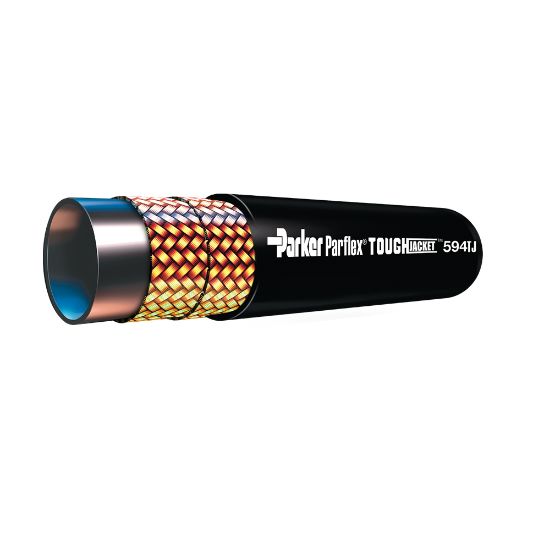

Parker 594TJ-4 - 100R19 Hose - 594TJ

The 594TJ TOUGHJACKET™ 4,000 PSI HOSE is a 4,000 psi hose featuring maximum abrasion resistance. Meets SAE 100R19. Available in long, continuous lengths and as bonded hose and/or formed hose assembly.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 594TJ-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Size	-4	Inside Diameter	1/4 inch
Design Factor	4:1	Maximum Operating Temperature	100 °C
Minimum Bend Radius	1-3/4 inch	Cover Material	Polyurethane
Compatible Fitting	56 Series	Application	Transportation
Media	Petroleum Hydraulic Fluids	Hose Cover Type	ToughJACKET™
Specifications Met	MSHA	Hose Inner Tube Material	Copolyester
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Weight	0.19 kg/m
Outside Diameter	21.5 mm	Maximum Operating Pressure	4061 psi
Hose I.D. (inch)	1/4
