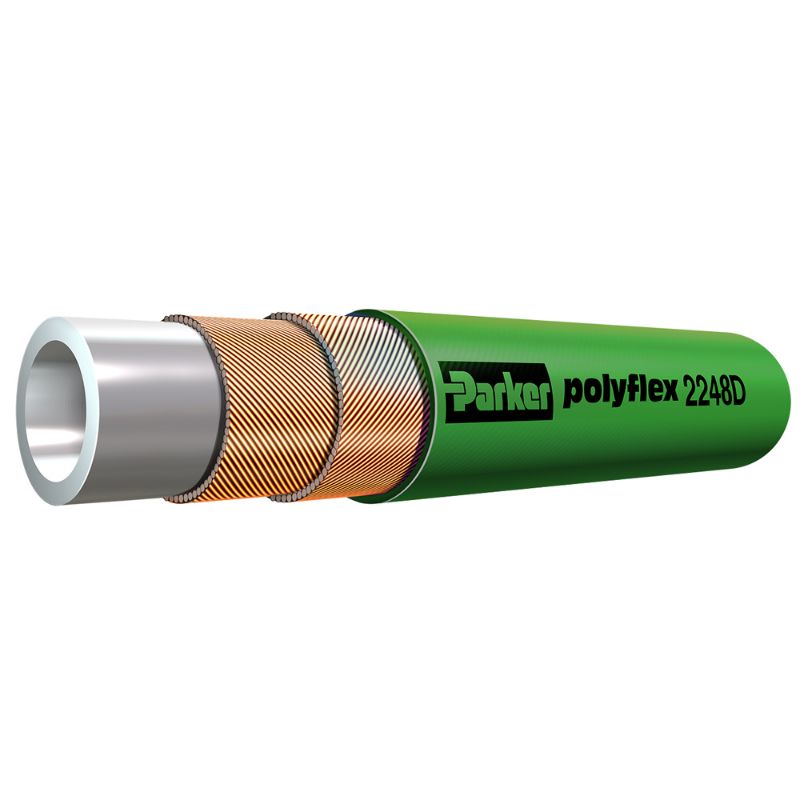

Picture of Parker 2240D-04V33-TC - Water Blast Hose - 2240D/2248D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2240D-04V33-TC - Water Blast Hose - 2240D/2248D

High Pressure Water Blast 2240D/2248D Hoses are developed for use as a high pressure tube cleaning hose and for ultra high pressure applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2240D-04V33-TC
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature-10 °C
MediaWaterMaximum Operating Temperature70 °C
Cover MaterialPolyamide (PA)Weight0.20 lb/ft
Inside Diameter6.4 mmDesign Factor2.5:1
Specifications MetDIN 1829-2Maximum Operating Pressure15950 psi
ApplicationIndustrial CleaningOutside Diameter11.6 mm
Compatible FittingTX SeriesMinimum Bend Radius110 mm
Hose Inner Tube MaterialPolyoxymethylene (POM)Hose Reinforcement Material2 Spirals of Maximum Tensile Steel Wire
Hose I.D. (inch)1/4Maximum Working Pressure (psi)15950
