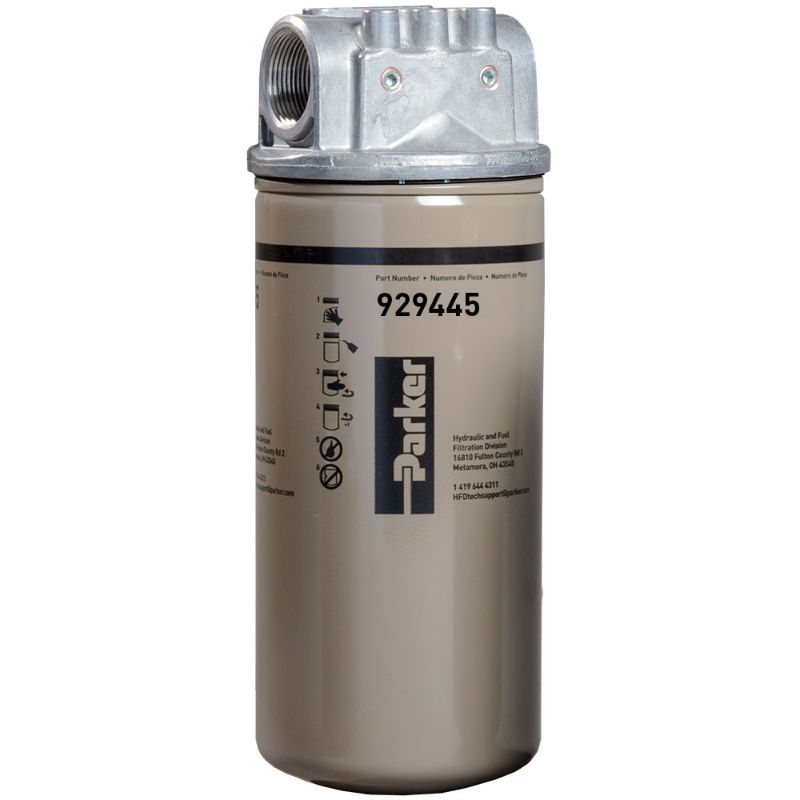

Parker 50AT210BBPGN20H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50AT210BBPGN20H

$194.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	1-1/4" NPT ports
Seal Material	Nitrile	Weight	2.18
Compatible Element	929445	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Pressure Rating	10.3	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	10 micron microglass	Maximum Operating Temperature	225
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Indicator Pressure Setting	1.4
Mounting Type	Inline	Indicator Type	Sold separately
Bypass Valve Pressure Rating	1.7 bar	Flow Rate	43
Housing Material	Low Carbon Steel	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	10 micron microglass
Indicator Type	Sold separately	Bypass Valve (psi)	25
Port Connection Type	1-1/4" NPT ports	Flow Rate (gpm)	43
