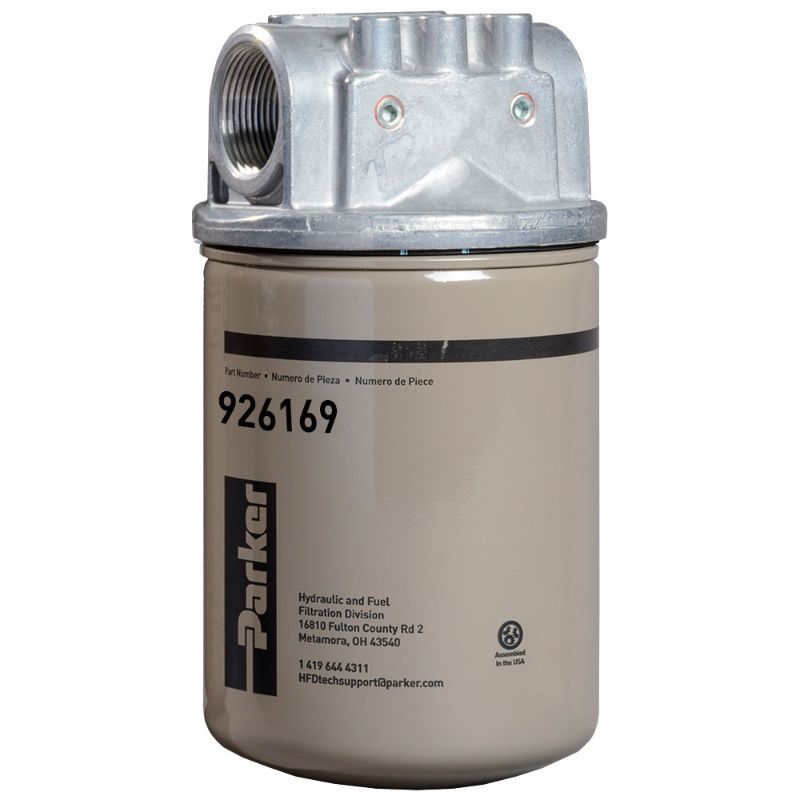

Parker 50AT110CBPGS20H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50AT110CBPGS20H

$90.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Indicator Pressure Setting	20
Maximum Operating Temperature	107	Indicator Type	Sold separately
Mounting Type	Inline	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Bypass Valve Pressure Rating	25	Flow Rate	36
Housing Material	Low Carbon Steel	Seal Material	Nitrile
Port Type	SAE-20 ports	Compatible Element	926169
Weight	1.77	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	10 micron cellulose
Pressure Rating	150	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	10 micron cellulose
Indicator Type	Sold separately	Bypass Valve (psi)	25
Flow Rate (gpm)	36	Port Connection Type	SAE-20 ports
