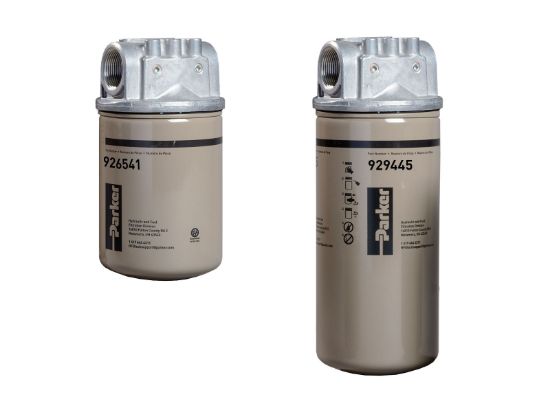

Parker 50AT10BN3OON - 50AT Series Low Pressure Filter

50AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50AT10BN3OON

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Replacement Element	928766	Port	20 SAE
Pkg Qty	1	Operating Temperature	-40F to 225F (-40C to 107C)
Bypass	3 PSI (0.2 bar)	Nominal Filter Rating	10 micron
Indicator Type	No Indicator	Seals	Nitrile
Element Length	Single	UOM	EA
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	Nominal Flow Rating	35 GPM (132 LPM)
Gauge Port Location	No Gauge Port	Filter Media Code	10B
Nominal Filter Micron Rating	10 micron	Nominal Flow Rating	30 GPM (114 LPM)
Indicator Type	No Indicator	Element Length	Single
Filter Type	Low Pressure Filter	Parker Division	Hydraulic Filter
Port Type	SAE	Port	20 SAE
Seals	Nitrile	Gauge Port Location	No Gauge Port
Bypass	3 PSI (0.2 bar)	Series	50AT
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Filter Media Type	Microglass
Operating Temperature	-40F to 225F (-40C to 107C)	Parker Group	Filtration

Product resources

12AT/50AT/80AT/80UT Series (PDF)
