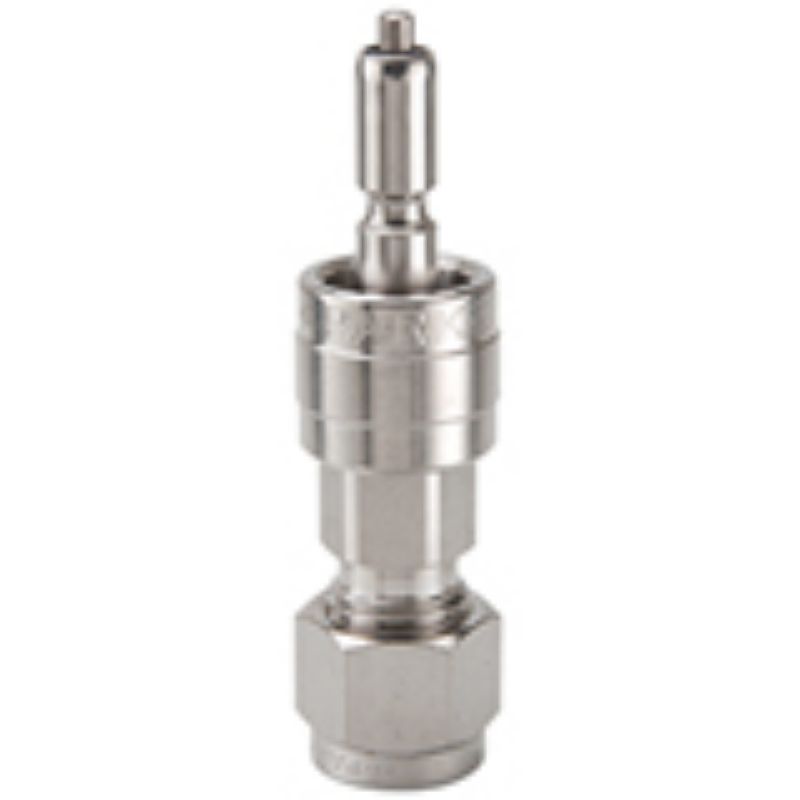

Parker 4Z-Q4P-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Name: Parker 4Z-Q4P-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series
SKU: 4Z-Q4P-SS
Price: 99.48 USD
Availability: InStock

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:

1 Limited Stock

Norfolk, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 4Z-Q4P-SS

$99.48/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 psi
Valve Type	Unvalved	Vacuum Pressure Rating	0.05 mm-Hg
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Body Material	316 Stainless steel	Minimum Operating Temperature	-15 °F
Hose Inside Diameter	na	Application	Instrumentation
Product Type	Push-to-Connect	Seal Material	na
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	na	Maximum Operating Pressure	3000
Connection Type	CPI tube end	Tube Size (inch)	1/4
