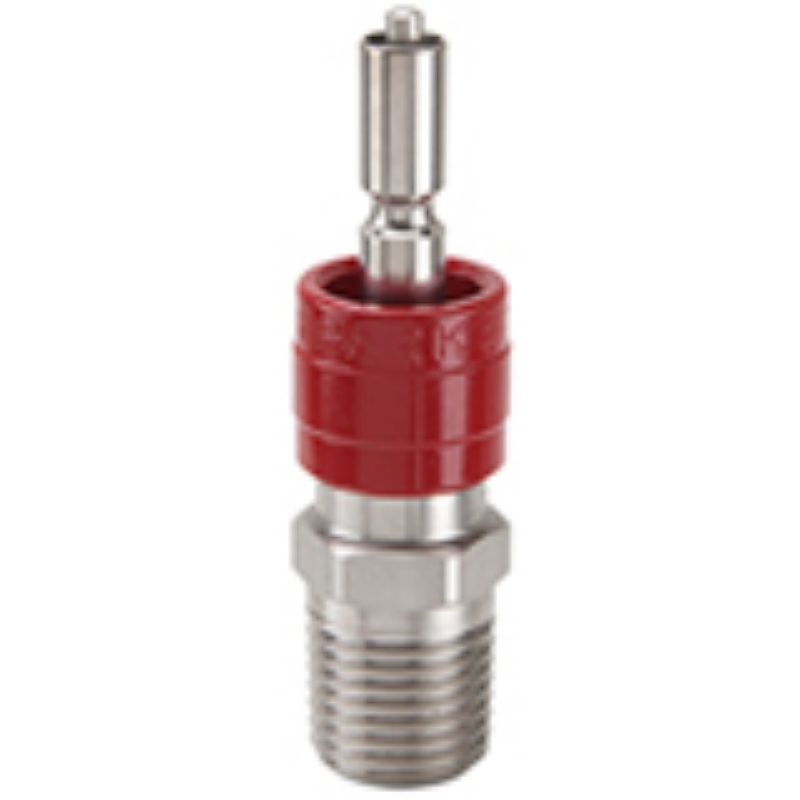

Parker 4M-Q4VY-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 4M-Q4VY-SS

$101.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Valve Type	Poppet	Maximum Operating Temperature	400 °F
Body Material	316 Stainless steel	Minimum Operating Temperature	-15 °F
Application	Instrumentation	Product Type	Push-to-Connect
Hose Inside Diameter	na	Seal Material	Fluorocarbon
Maximum Operating Pressure	3000 psi	Vacuum Pressure Rating	0.05 mm-Hg
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Maximum Operating Pressure	3000
Connection Type	Male NPT	Tube Size (inch)	na
