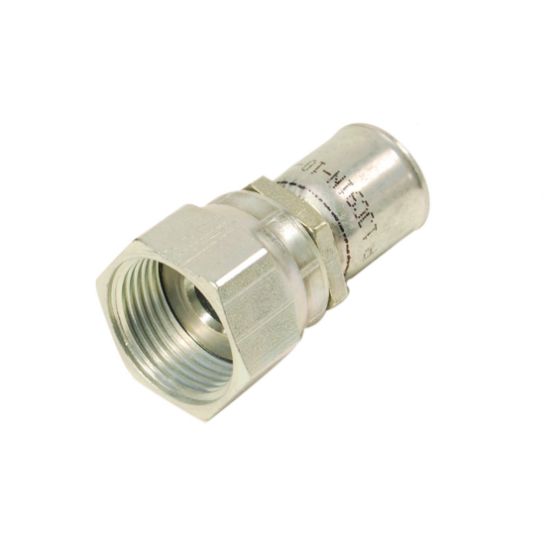

Parker 1JC91N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 1JC91N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 1JC91N-10-10
Price: 63.86 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

1 Limited Stock

Sumter, SC

Partner Available:

43 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1JC91N-10-10

$63.86/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Industry	General Industrial
Maximum Operating Pressure	3000 psi (Dependent on hose)	Brand	Parker
Product Series	91N	Connection 2 Size	1"-14 inch Thread
Division	Parflex Division	Configuration	Hose to Port
Fitting Length	52 mm	Dimensional Weight	0.0374 lb
For Fluid Type	Oil	Technology	Fluid & Gas Handling
Connection 1 Size	1/2 inch Hose I.D.	Hex Size	15/16 inch (see drawing legend J)
Coating	Chromium 6 Free-plated	Connection Length	12.7 mm
Body Material	Steel	Connection 2 Type	Swivel
Application	General Industrial	Shape	Straight
Division	Parflex Division	Product Type	Hose Fittings
Hex Size 1	1-1/8 inch (see drawing legend H)	Tube Outside Diameter	n/a
Connection 1 Type	Hose	Specifications Met	n/a
Hose I.D. (inch)	1/2"	Product Style	Female Seal-Lok - Swivel - Straight - Short
Length (inch)	2.05"	Connection 2 Size	1"-14
