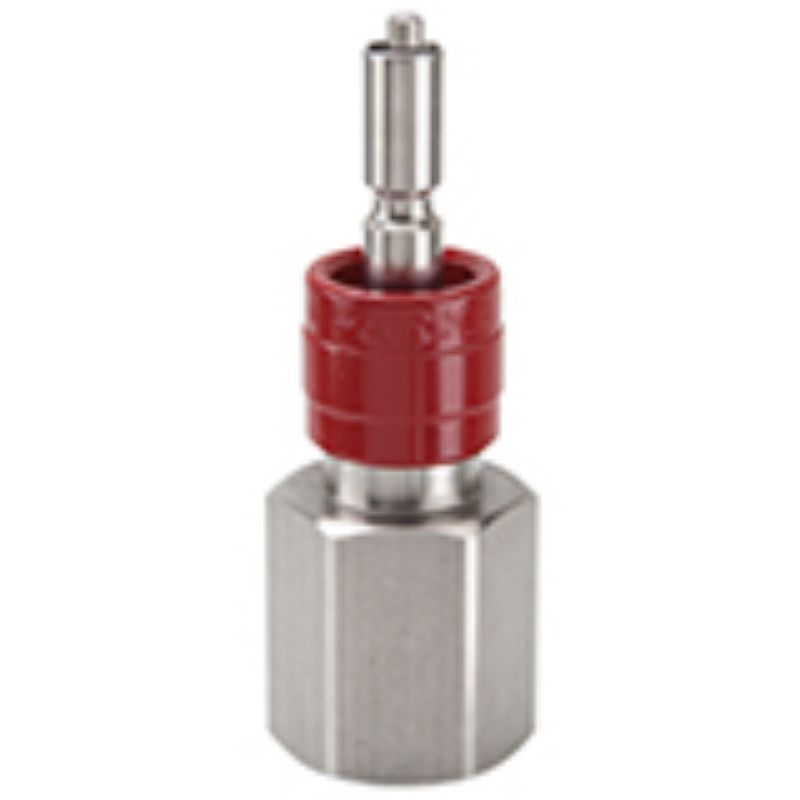

Parker 4F-Q4VY-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 4F-Q4VY-SS

$126.24/each

Products specifications

Attribute name	Attribute value
Product Type	Push-to-Connect	Application	Instrumentation
Hose Inside Diameter	na	Minimum Operating Temperature	-15 °F
Seal Material	Fluorocarbon	Body Material	316 Stainless steel
Division	Quick Coupling Division	Valve Type	Poppet
Maximum Operating Temperature	400 °F	Maximum Operating Pressure	3000 psi
Vacuum Pressure Rating	0.05 mm-Hg	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Maximum Operating Pressure	3000	Connection Type	Female NPT
Tube Size (inch)	na
