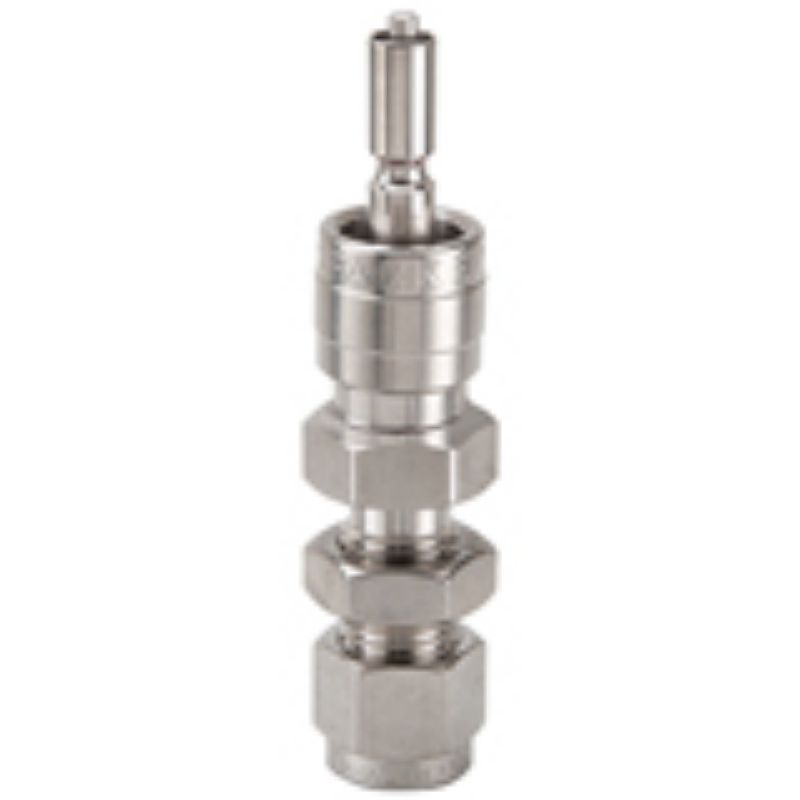

Parker 4AH-Q4P-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4AH-Q4P-SS

$110.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Unvalved
Vacuum Pressure Rating	0.05 mm-Hg	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Seal Material	na
Maximum Operating Pressure	3000 psi	Product Type	Push-to-Connect
Application	Instrumentation	Minimum Operating Temperature	-15 °F
Hose Inside Diameter	na	Body Material	316 Stainless steel
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	na	Maximum Operating Pressure	3000
Connection Type	A-Lok bulkhead tube end	Tube Size (inch)	1/4
