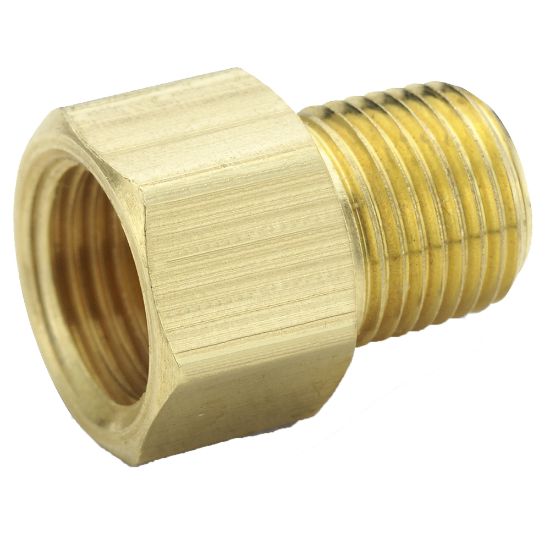

Parker 48IFHD-2-2 - Brass Inverted Flare Fittings

Name: Parker 48IFHD-2-2 - Brass Inverted Flare Fittings
SKU: 48IFHD-2-2
Price: 6.87 USD
Availability: InStock

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:

19 In Stock

Knoxville, TN	10
Norfolk, VA	5
Jacksonville, FL	2
Richmond, VA	2

Partner Available:

147 In Stock

Brand Parker

Part No. 48IFHD-2-2

$6.87

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-65 °F	Maximum Operating Pressure	193 bar
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Application	Pumps, Brake Lines	Specifications Met	SAE J512
Nut Material	Brass, Zinc Chromate Steel	Connection 2 Thread Size (inch)	1/8
Connection 1 Tube O.D. (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 2 Style	Male Pipe
Style	Flare to Pipe	Connection 1 Style	Inverted Flare

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
