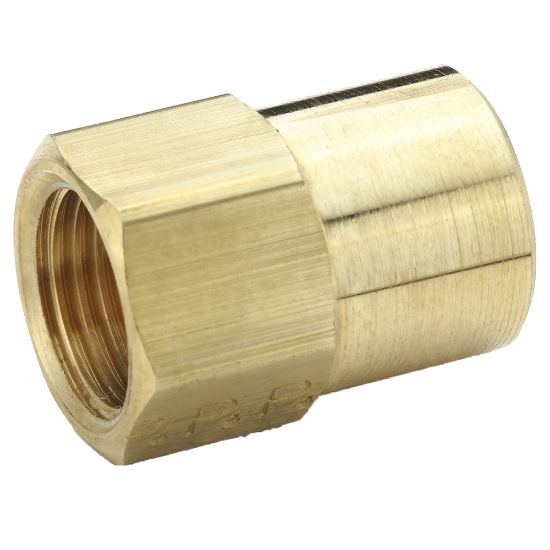

Parker 46IFHD-3-2 - Brass Inverted Flare Fittings

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:	Quote Required
Partner Available:	57 In Stock

Brand Parker

Part No. 46IFHD-3-2

$4.55

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-65 °F	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	131 bar
Application	Pumps, Brake Lines	Specifications Met	SAE J512
Nut Material	Brass, Zinc Chromate Steel	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Shape	Connector
Connection 1 Tube O.D. (inch)	3/16	Connection 2 Style	Female Pipe
Connection 1 Style	Inverted Flare	Style	Flare to Female Pipe
