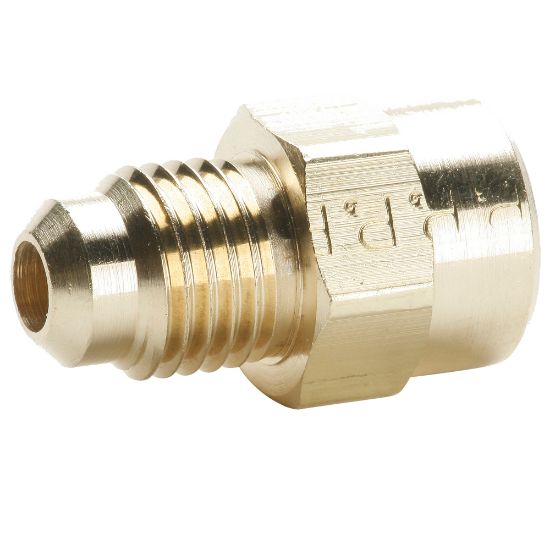

Parker 46F-10-12 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. 46F-10-12

$41.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	650 psi
Brand	Parker	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Minimum Operating Temperature	-53 °C	Division	Fluid System Connectors Division
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Body Material	Brass	Dimensional Weight	0.27594424460431655 lb
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	250 °F
Shape	Connector	Connection 2 Type	Female Pipe
Connection 1 Type	Flare	Connection 1 Thread Size	7/8-14 inch
Connection 1 Tube Outside Diameter	5/8 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 2 Thread Size	3/4 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Product Style	Flare to Female Pipe
