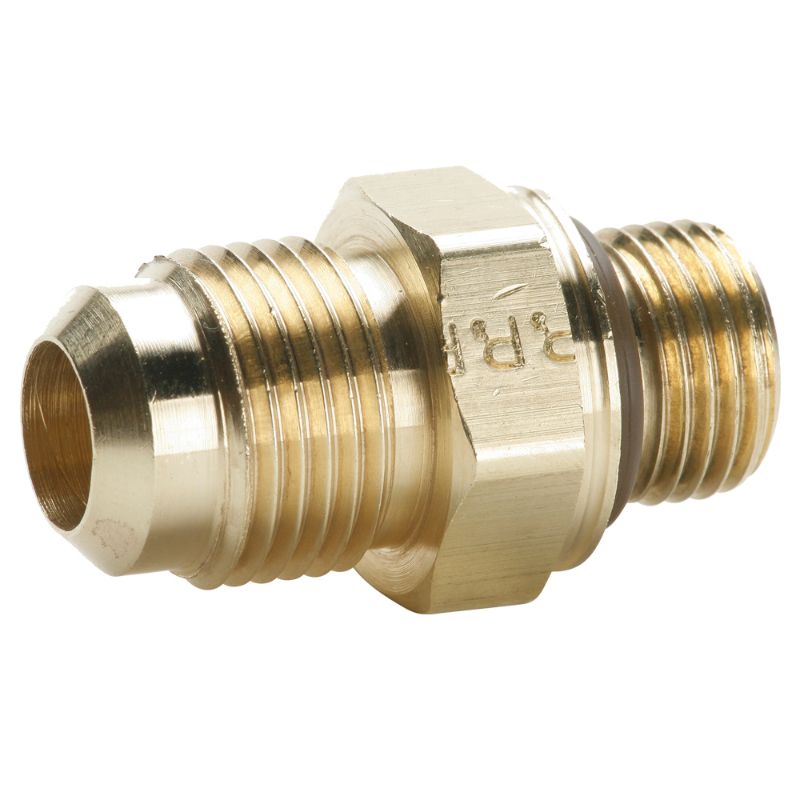

Parker 485F-12-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 485F-12-8

$32.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Technology	Fluid & Gas Handling	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Brand	Parker
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	37.9 bar
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Body Material	Brass
Minimum Operating Temperature	-65 °F	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Division	Fluid System Connectors Division	Shape	Connector
Connection 1 Type	Flare	Connection 1 Thread Size	3/4-16 inch
Connection 3 Tube Outside Diameter	NA	Connection 2 Type	SAE Straight Thread
Connection 3 Type	NA	Connection 2 Thread Size	1-1/16-14 inch
Connection 3 Thread Size	NA	Connection 1 Tube Outside Diameter	3/4 inch
Connection 2 Tube Outside Diameter	NA	Product Style	Flare to Straight Thread
