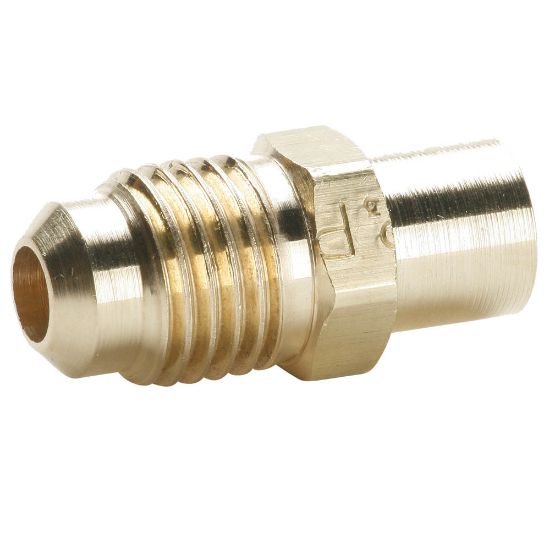

Parker 43F-4-6 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	20 In Stock

Brand Parker

Part No. 43F-4-6

$5.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
Application	Pumps, Gas Grills, Coffee Makers, Adapters	Minimum Operating Temperature	-53 °C
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Brand	Parker
Maximum Operating Pressure	193 bar	Shape	Connector
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 1 Tube Outside Diameter	1/4 inch	Connection 2 Tube Outside Diameter	3/8 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Product Style	Flare to Solder	Connection 2 Type	Solder O D
