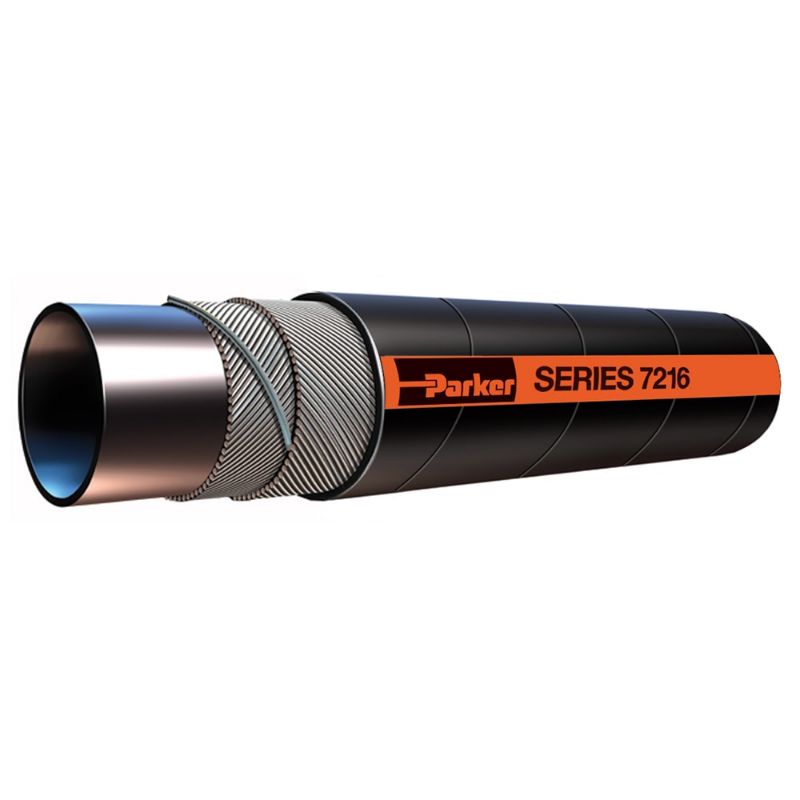

Parker 7216-1002 - TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE

Translite Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 150 psi.

Availability:	Quote Required
Partner Available:	51 In Stock

Brand Parker

Part No. 7216-1002

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Design Factor	4:1
Specifications Met	N/A	Maximum Operating Pressure	150 psi
Inside Diameter	1 inch	Minimum Bend Radius	51 mm
Hose Inner Tube Material	Black	Size	-16
Nominal Hose Inside Diameter	25 mm	Media	Fuels (Diesel) - Check fuel type with our catalogue chart.
Weight	0.42 lb/ft	Maximum Operating Temperature	82 °C
Application	Petroleum Transfer	Cover Material	Nitrile
Outside Diameter	34.6 mm	Hose Reinforcement Material	Multiple Plies of Textile with Wire Helix
Vacuum Pressure Rating	737 mm-Hg	Color	Black
Hose I.D. (inch)	1
