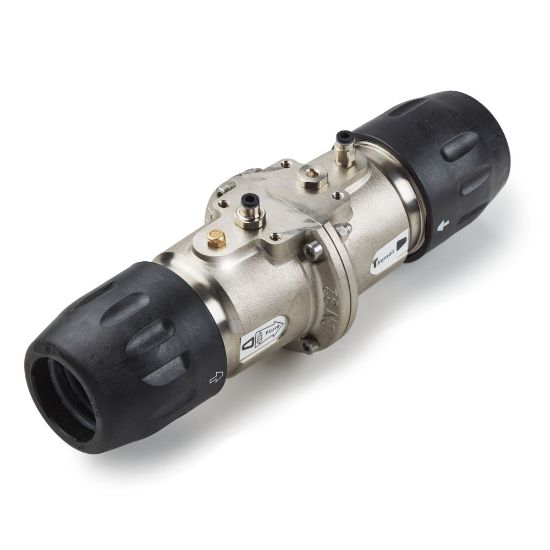

Parker 4230 00 40 - Transair® Valves for Aluminum Pipe

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4230 00 40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Pneumatic	Brand	Transair
Division	Fluid System Connectors Division	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Application	In Plant Pneumatic	Division	Fluid System Connectors Division
Seal Material	NBR	Assembly Time	0.04 Hours
Configuration	Pipe to Pipe	Specifications Met	CE
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	185 °F	Connection 1 Type	Pipe
Connection 2 Type	Pipe	For Fluid Type	Inert Gases
Function	2-Way	Body Material	Technical Polymer
Product Type	Flow Control Valve	Flow Direction	Bidirectional
Orifice Size	40 mm	Mounting Type	In-line/Pipe
Response Time	n/a	Seat Material	PTFE
Connection 1 Size	40 mm	Weight	1.814 kg
Options	Standard	Product Style	Butterfly Valve
Operation Type	Pneumatic	Quantity per Box	0
Connection 2 Size	40 mm	Pipe O.D. (mm)	40
Pipe O.D. (inch)	1-1/2	Connection Thread Size (inch)	n/a
Vented	No	Silicone Free	Yes
Style	Remote Shut-Off Valve
