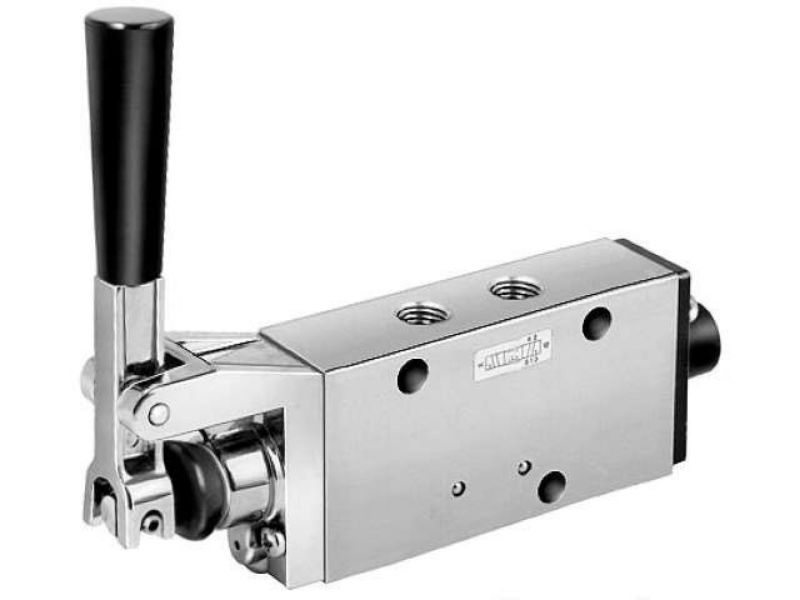

Parker 422CS014W - 42 Series Manual/Mechanical Valve - 4-way 3-position

42 Series Manual/Mechanical Valve - 4-way 3-position

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 422CS014W

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port	1/4 NPT
UOM	EA	Operator Type Detail	Inline Parallel Lever
CV Factor	1.3	Offset Return Type	Detent
Center Condition	Center Exhaust	Pkg Qty	1
Operator Type Detail	Inline Parallel Lever	Parker Division	Pneumatic
Valve Positions	3-position	Port Inch/BSP	NPT
Pneumatic Valve Type	Inline Valve	Supply Pressure Range	Vacuum to 150 PSI (Vacuum to 10.3 bar)
Valve Passages	4-way	Port	1/4 NPT
Offset Return Type	Detent	Parker Group	Automation
Center Condition	Center Exhaust	CV Factor	1.3
Series	42	Operator Type	Manual/Mechanical
Operating Temperature	-18°C to 60°C (0°F to 140°F)
