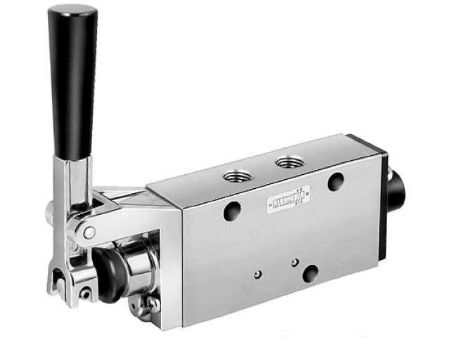

42 Series Manual/Mechanical Valve - 4-way 3-position
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
42 Series Manual/Mechanical Valve - 4-way 3-position
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Center Condition | Port | CV Factor | Offset Return Type | Pkg Qty | Operator Type Detail | Offset Return Type | Pneumatic Valve Type | Parker Group | Supply Pressure Range | Valve Passages | Port | Operator Type Detail | Series | Operator Type | CV Factor | Center Condition | Operating Temperature | Parker Division | Valve Positions | Port Inch/BSP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 422CR013W | Quote Required | $0.01 | EA | EA | All Ports Blocked | 1/4 NPT | 1.3 | Detent | 1 | Inline Perpendicular Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 1/4 NPT | Inline Perpendicular Lever | 42 | Manual/Mechanical | 1.3 | All Ports Blocked | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT | ||
| 422CR014W | Quote Required | $0.01 | EA | EA | Center Exhaust | 1/4 NPT | 1.3 | Detent | 1 | Inline Perpendicular Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 1/4 NPT | Inline Perpendicular Lever | 42 | Manual/Mechanical | 1.3 | Center Exhaust | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT | ||
| 422CR023W | Quote Required | 1 Limited Stock | $382.90 | EA | EA | All Ports Blocked | 3/8 NPT | 1.3 | Detent | 1 | Inline Perpendicular Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 3/8 NPT | Inline Perpendicular Lever | 42 | Manual/Mechanical | 1.3 | All Ports Blocked | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT | |
| 422CR024W | Quote Required | TBD | EA | Center Exhaust | 3/8 NPT | 1.3 | Detent | 1 | Inline Perpendicular Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 3/8 NPT | Inline Perpendicular Lever | 42 | Manual/Mechanical | 1.3 | Center Exhaust | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT | |||
| 422CS013W | Quote Required | $0.01 | EA | EA | All Ports Blocked | 1/4 NPT | 1.3 | Detent | 1 | Inline Parallel Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 1/4 NPT | Inline Parallel Lever | 42 | Manual/Mechanical | 1.3 | All Ports Blocked | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT | ||
| 422CS014W | Quote Required | $0.01 | EA | EA | Center Exhaust | 1/4 NPT | 1.3 | Detent | 1 | Inline Parallel Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 1/4 NPT | Inline Parallel Lever | 42 | Manual/Mechanical | 1.3 | Center Exhaust | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT | ||
| 422CS023W | Quote Required | $382.90 | EA | EA | All Ports Blocked | 3/8 NPT | 1.3 | Detent | 1 | Inline Parallel Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 3/8 NPT | Inline Parallel Lever | 42 | Manual/Mechanical | 1.3 | All Ports Blocked | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT | ||
| 422CS024W | Quote Required | 4 In Stock | $382.90 | EA | EA | Center Exhaust | 3/8 NPT | 1.3 | Detent | 1 | Inline Parallel Lever | Detent | Inline Valve | Automation | Vacuum to 150 PSI (Vacuum to 10.3 bar) | 4-way | 3/8 NPT | Inline Parallel Lever | 42 | Manual/Mechanical | 1.3 | Center Exhaust | -18°C to 60°C (0°F to 140°F) | Pneumatic | 3-position | NPT |
