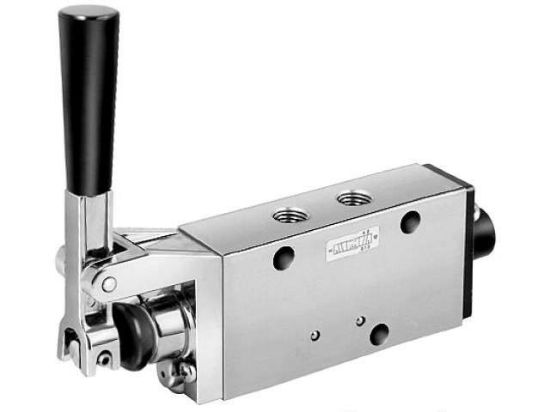

Parker 422CS013W - 42 Series Manual/Mechanical Valve - 4-way 3-position

42 Series Manual/Mechanical Valve - 4-way 3-position

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 422CS013W

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
CV Factor	1.3	Operator Type Detail	Inline Parallel Lever
Pkg Qty	1	Offset Return Type	Detent
Center Condition	All Ports Blocked	Port	1/4 NPT
CV Factor	1.3	Series	42
Supply Pressure Range	Vacuum to 150 PSI (Vacuum to 10.3 bar)	Center Condition	All Ports Blocked
Operator Type	Manual/Mechanical	Valve Positions	3-position
Operating Temperature	-18°C to 60°C (0°F to 140°F)	Parker Division	Pneumatic
Pneumatic Valve Type	Inline Valve	Port Inch/BSP	NPT
Operator Type Detail	Inline Parallel Lever	Offset Return Type	Detent
Valve Passages	4-way	Parker Group	Automation
Port	1/4 NPT
