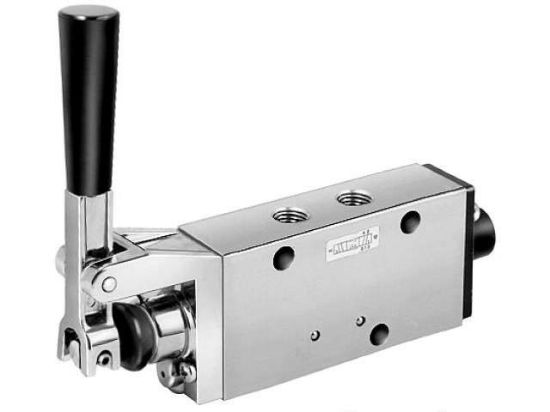

Parker 422CR024W - 42 Series Manual/Mechanical Valve - 4-way 3-position

42 Series Manual/Mechanical Valve - 4-way 3-position

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 422CR024W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Port	3/8 NPT	CV Factor	1.3
Operator Type Detail	Inline Perpendicular Lever	Offset Return Type	Detent
Center Condition	Center Exhaust	Series	42
Parker Group	Automation	Parker Division	Pneumatic
Port Inch/BSP	NPT	Port	3/8 NPT
Operating Temperature	-18°C to 60°C (0°F to 140°F)	Supply Pressure Range	Vacuum to 150 PSI (Vacuum to 10.3 bar)
Pneumatic Valve Type	Inline Valve	Operator Type	Manual/Mechanical
Operator Type Detail	Inline Perpendicular Lever	Valve Passages	4-way
Valve Positions	3-position	Offset Return Type	Detent
CV Factor	1.3	Center Condition	Center Exhaust
