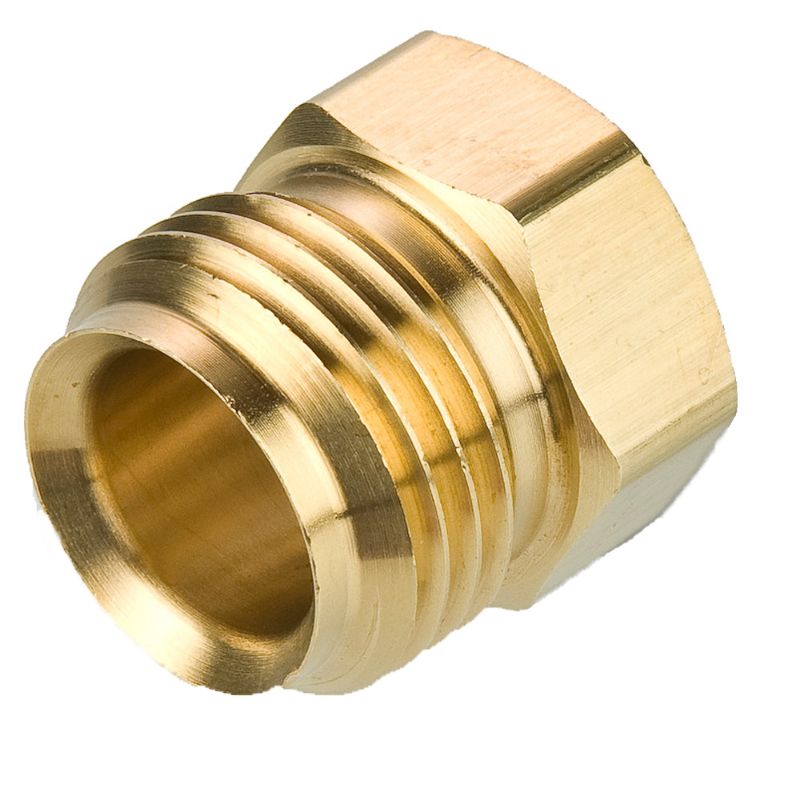

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 41IFF-6 - Brass Inverted Flare Fittings

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 41IFF-6

$19.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	69 bar	Minimum Operating Temperature	-65 °F
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Application	Pumps, Brake Lines	Specifications Met	SAE J512
Nut Material	Brass, Zinc Chromate Steel	Connection 2 Style	na
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	3/8	Connection 1 Style	Inverted Flare
Style	Flare	Shape	Piltoed Nut

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
