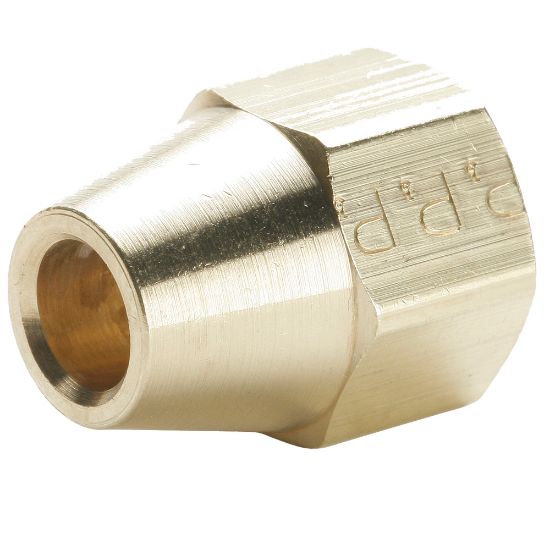

Parker 41FS-12 - Brass 45° Flare Fittings

Name: Parker 41FS-12 - Brass 45° Flare Fittings
SKU: 41FS-12
Price: 15.74 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

7 In Stock

Norfolk, VA	3
Ashland, VA	3
Jacksonville, FL	1

Partner Available:

57 In Stock

Brand Parker

Part No. 41FS-12

$15.74

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-65 °F	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Dimensional Weight	0.27594424460431655 lb	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	44.8 bar
Connection 1 Type	Flare	Connection 3 Tube Outside Diameter	NA
Product Style	Flare	Connection 2 Type	NA
Connection 3 Type	NA	Connection 1 Thread Size	1-1/16-14 inch
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	NA
Shape	Short Extruded Nut
