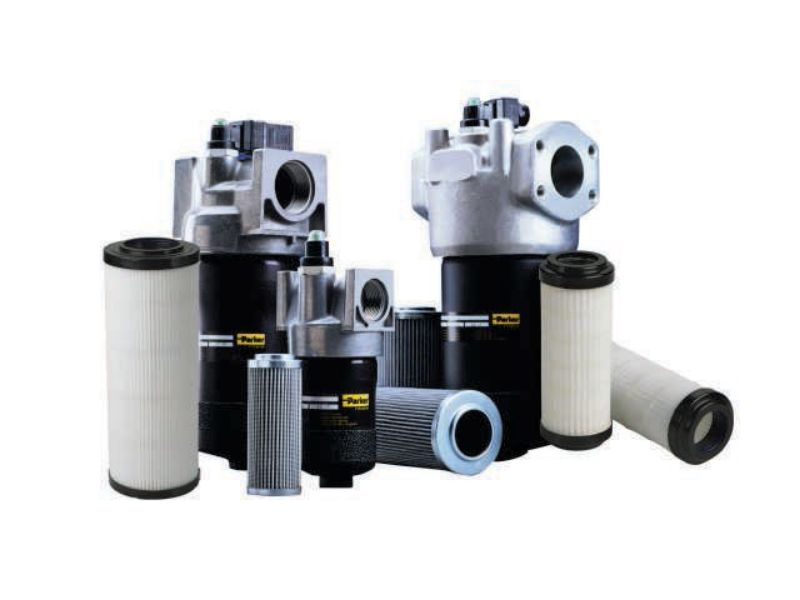

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 40CN105QEBE2KN164 - 40CN Series Medium Pressure Filter

40CN Series Hydraulic and Lube Oil Medium Pressure Filter

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 40CN105QEBE2KN164

$467.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Nominal Flow Rating	15 GPM (57 LPM)
Bypass	50 PSI (3.5 bar)	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Nominal Filter Rating	5 micron	Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)
Port	1 NPT	Max Pressure - Fatigue MAOP	800 psi (55.2 bar)
Options	SAE-4 drain port on bowl	Seals	Nitrile
UOM	EA	Pkg Qty	1
Operating Temperature	-40F to 225F (-40C to 107C)	Replacement Element	936707Q
Element Length	Single	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Port Type	NPT
Seals	Nitrile	Port	1 NPT
Filter Media Code	05QE	Filter Type	Medium Pressure Filter
Nominal Filter Micron Rating	5 micron	Filter Media Type	Ecoglass III
Indicator Type	Electrical/Visual (DIN-43650 Connection)	Bypass	50 PSI (3.5 bar)
Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)	Options	SAE-4 drain port on bowl
Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)	Nominal Flow Rating	15 GPM (57 LPM)
Series	40CN

Product resources

CN Series (PDF)
