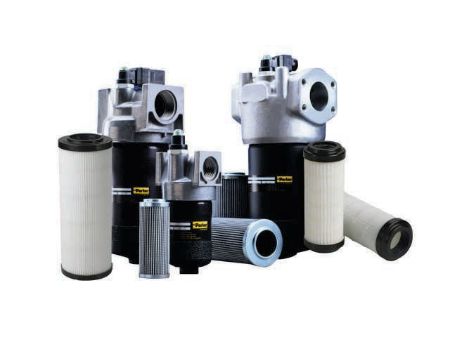

40CN Series Medium Pressure Filter
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
40CN Series Hydraulic and Lube Oil Medium Pressure Filter
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Port | Nominal Flow Rating | Operating Temperature | Indicator Type | Options | Element Length | Bypass | Replacement Element | Seals | Max Pressure - Non-Fatigue MAOP | Max Pressure - Fatigue MAOP | Pkg Qty | Nominal Filter Rating | Filter Media Code | Element Length | Max Pressure - Non-Fatigue MAOP | Nominal Filter Micron Rating | Nominal Flow Rating | Options | Bypass | Parker Division | Filter Media Type | Seals | Filter Type | Max Pressure - Fatigue MAOP | Operating Temperature | Port Type | Port | Parker Group | Series | Indicator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40CN102QEBE2GN1621 | Quote Required | TBD | EA | 1 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 NPT | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2GN164 | Quote Required | TBD | EA | 1 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | SAE-4 drain port on bowl | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 NPT | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2GN2421 | Quote Required | TBD | EA | 1 1/2 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 1/2 NPT | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2GN244 | Quote Required | TBD | EA | 1 1/2 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | SAE-4 drain port on bowl | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 1/2 NPT | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2GS1621 | Quote Required | TBD | EA | 16 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 16 SAE | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2GS2421 | Quote Required | TBD | EA | 24 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 24 SAE | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2GS244 | Quote Required | TBD | EA | 24 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | SAE-4 drain port on bowl | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 24 SAE | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2KN1621 | Quote Required | TBD | EA | 1 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 50 PSI (3.5 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 50 PSI (3.5 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 NPT | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2KN164 | Quote Required | TBD | EA | 1 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | SAE-4 drain port on bowl | Single | 50 PSI (3.5 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 NPT | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2KN2421 | Quote Required | TBD | EA | 1 1/2 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 50 PSI (3.5 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 50 PSI (3.5 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 1/2 NPT | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2KS1621 | Quote Required | TBD | EA | 16 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 50 PSI (3.5 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 50 PSI (3.5 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 16 SAE | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2KS2421 | Quote Required | TBD | EA | 24 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | No bypass and drain port | Single | 50 PSI (3.5 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 50 PSI (3.5 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 24 SAE | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBE2KS244 | Quote Required | TBD | EA | 24 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Electrical/Visual (DIN-43650 Connection) | SAE-4 drain port on bowl | Single | 50 PSI (3.5 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 50 PSI (3.5 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 24 SAE | Filtration | 40CN | Electrical/Visual (DIN-43650 Connection) | ||
| 40CN102QEBM2GN1621 | Quote Required | TBD | EA | 1 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 NPT | Filtration | 40CN | Visual - Automatic Reset | ||
| 40CN102QEBM2GN164 | Quote Required | TBD | EA | 1 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | SAE-4 drain port on bowl | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 NPT | Filtration | 40CN | Visual - Automatic Reset | ||
| 40CN102QEBM2GN2421 | Quote Required | TBD | EA | 1 1/2 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 1/2 NPT | Filtration | 40CN | Visual - Automatic Reset | ||
| 40CN102QEBM2GN244 | Quote Required | TBD | EA | 1 1/2 NPT | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | SAE-4 drain port on bowl | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | NPT | 1 1/2 NPT | Filtration | 40CN | Visual - Automatic Reset | ||
| 40CN102QEBM2GS1621 | Quote Required | TBD | EA | 16 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 16 SAE | Filtration | 40CN | Visual - Automatic Reset | ||
| 40CN102QEBM2GS164 | Quote Required | TBD | EA | 16 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | SAE-4 drain port on bowl | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | SAE-4 drain port on bowl | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 16 SAE | Filtration | 40CN | Visual - Automatic Reset | ||
| 40CN102QEBM2GS2421 | Quote Required | TBD | EA | 24 SAE | 15 GPM (57 LPM) | -40F to 225F (-40C to 107C) | Visual - Automatic Reset | No bypass and drain port | Single | 25 PSI (1.7 bar) | 936706Q | Nitrile | 1000 psi (69 bar) | 800 psi (55.2 bar) | 1 | 2 micron | 02QE | Single | 1000 PSI (69 bar) | 2 micron | 15 GPM (57 LPM) | No bypass and drain port | 25 PSI (1.7 bar) | Hydraulic Filter | Ecoglass III | Nitrile | Medium Pressure Filter | 800 PSI (55.2 bar) | -40F to 225F (-40C to 107C) | SAE | 24 SAE | Filtration | 40CN | Visual - Automatic Reset |
