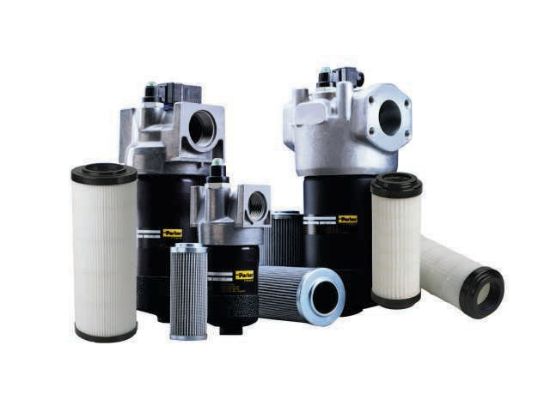

Parker 40CN102QEBE2GN1621 - 40CN Series Medium Pressure Filter

40CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 40CN102QEBE2GN1621

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port	1 NPT	Nominal Flow Rating	15 GPM (57 LPM)
Operating Temperature	-40F to 225F (-40C to 107C)	Indicator Type	Electrical/Visual (DIN-43650 Connection)
UOM	EA	Options	No bypass and drain port
Element Length	Single	Bypass	25 PSI (1.7 bar)
Replacement Element	936706Q	Seals	Nitrile
Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)	Max Pressure - Fatigue MAOP	800 psi (55.2 bar)
Pkg Qty	1	Nominal Filter Rating	2 micron
Filter Media Code	02QE	Element Length	Single
Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)	Nominal Filter Micron Rating	2 micron
Nominal Flow Rating	15 GPM (57 LPM)	Options	No bypass and drain port
Bypass	25 PSI (1.7 bar)	Parker Division	Hydraulic Filter
Filter Media Type	Ecoglass III	Seals	Nitrile
Filter Type	Medium Pressure Filter	Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)
Operating Temperature	-40F to 225F (-40C to 107C)	Port Type	NPT
Port	1 NPT	Parker Group	Filtration
Series	40CN	Indicator Type	Electrical/Visual (DIN-43650 Connection)

Product resources

CN Series (PDF)
