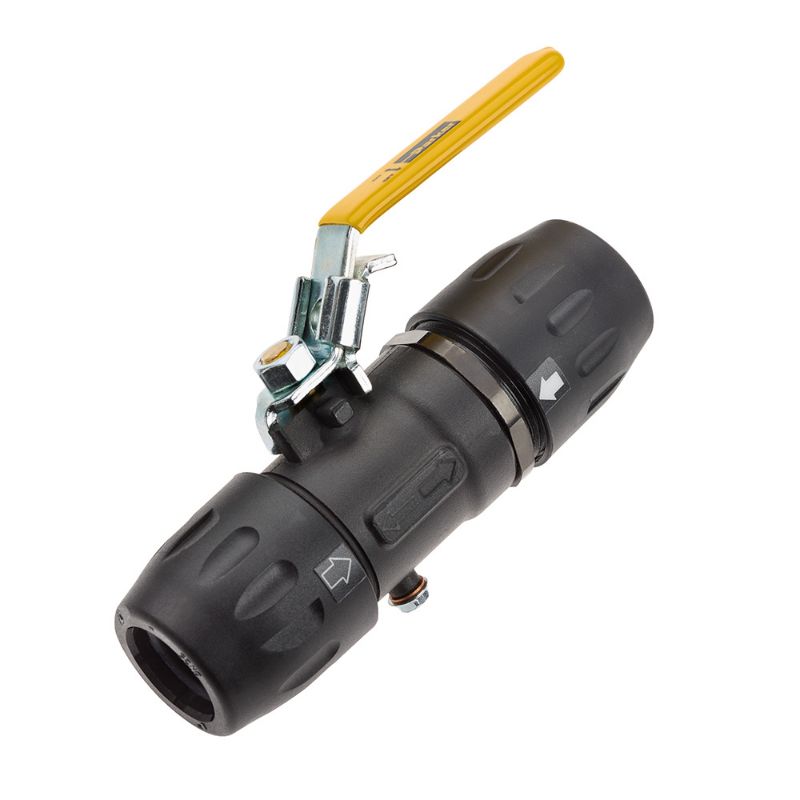

Parker 4092 25 00US - Transair® Valves for Aluminum Pipe

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4092 25 00US

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Industry	General Industrial	Technology	Fluid & Gas Handling
Application	In Plant Pneumatic	Division	Fluid System Connectors Division
Seal Material	NBR	Configuration	Pipe to Pipe
Specifications Met	EN 755.2	Connection 1 Type	Pipe
Maximum Operating Temperature	140	Connection 2 Type	Pipe
Function	2-Way	Body Material	Technical Polymer
For Fluid Type	Compressed Air	Minimum Operating Temperature	-4
Maximum Operating Pressure	232	Product Type	Flow Control Valve
Product Style	Ball Valve	Flow Direction	Bidirectional
Quantity per Box	2	Weight	1.970
Actuation Type	Manual	Options	Lockable
Orifice Size	25	Assembly Time	0.04
Mounting Type	In-line/Pipe	Response Time	n/a
Seat Material	PTFE	Operation Type	Manual
Connection 1 Size	1	Connection 2 Size	1
Vacuum Pressure Rating	29.6	Pipe O.D. (mm)	25
Pipe O.D. (inch)	1	Connection Thread Size (inch)	n/a
Style	Ball Valve	Vented	Yes
