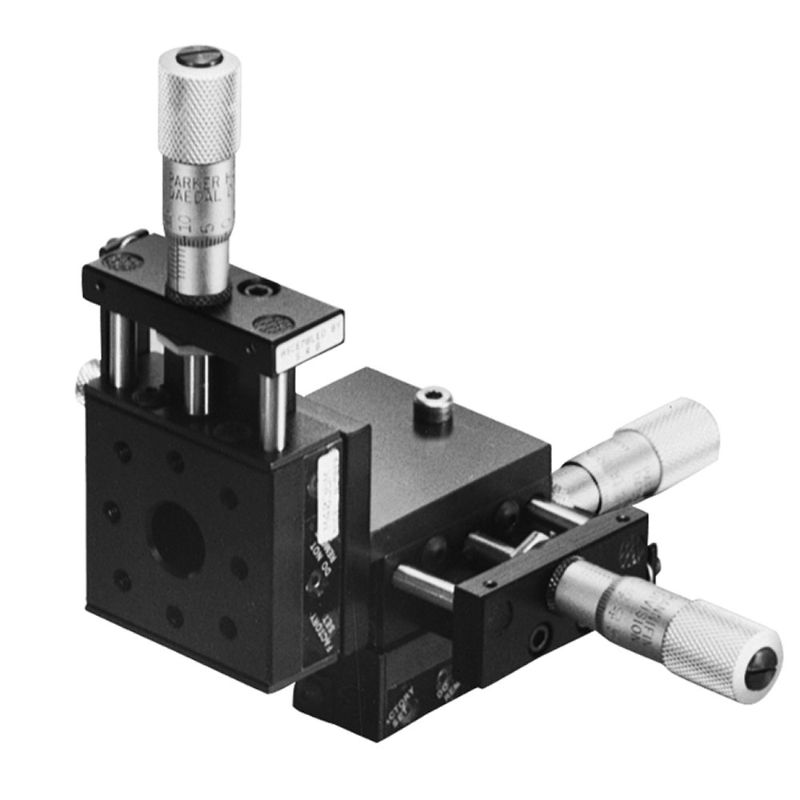

Parker 4004 - Manual Driven, Ball Bearing Guided, Standard Linear Positioning Stages - 4000 Series

4000-series ball-bearing guided manual linear positioners have an integral drive mechanism and offer travels of up to 2", payloads up to 123 lbs, plus exceptional smoothness, extremely low friction and a very good straightness/flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4004

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Drive Train Type	Imperial Micrometer	Product Type	Linear Stage
Number of Axes	1	Division	Electronic Motion and Controls Division
Mounting Option	Center Drive	Bearing Type	Ball
Maximum Travel	1 inch	Product Series	4000 Series
Load Capacity	11 kg	Width	1.75 inch
Payload (lbs)	25	Drive Mechanism	Imperial Micrometer
Axis Count	1	Locking	No
Travel (mm)	(imperial)	Travel (inch)	1
Type	English Model / Center Drive
