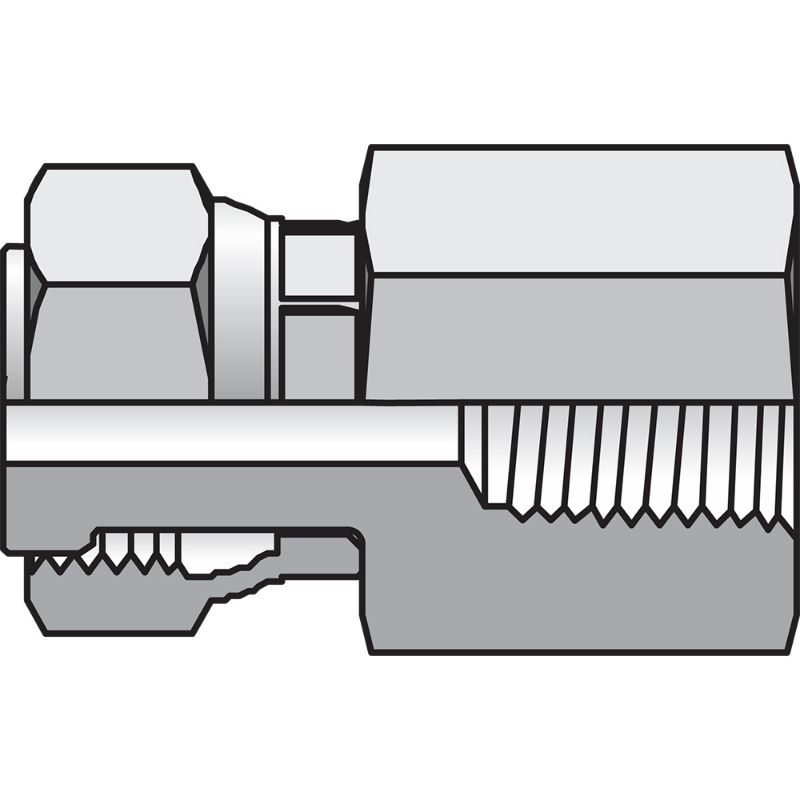

Parker 4-4 G6L-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	64 In Stock

Brand Parker

Part No. 4-4 G6L-S

$16.47/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 2 Type	Female NPT/NPTF	Connection 2 Thread Size	1/4-18 inch
Shape	Straight	Division	Tube Fittings Division
O-Ring Material	na	Connection Type	O-ring Face Seal
Connection 4 Type	na	Connection 1 Tube Outside Diameter	6 mm
Connection 4 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 3 Type	na	Connection 3 Thread Size	na
Dimensional Weight	0.06168277877697842 lb	Connection 1 Type	Female O-Ring Face Seal Swivel
Specifications Met	SAE J1453	Connection 2 Tube Outside Diameter	na
Maximum Dynamic Pressure	6000 psi
