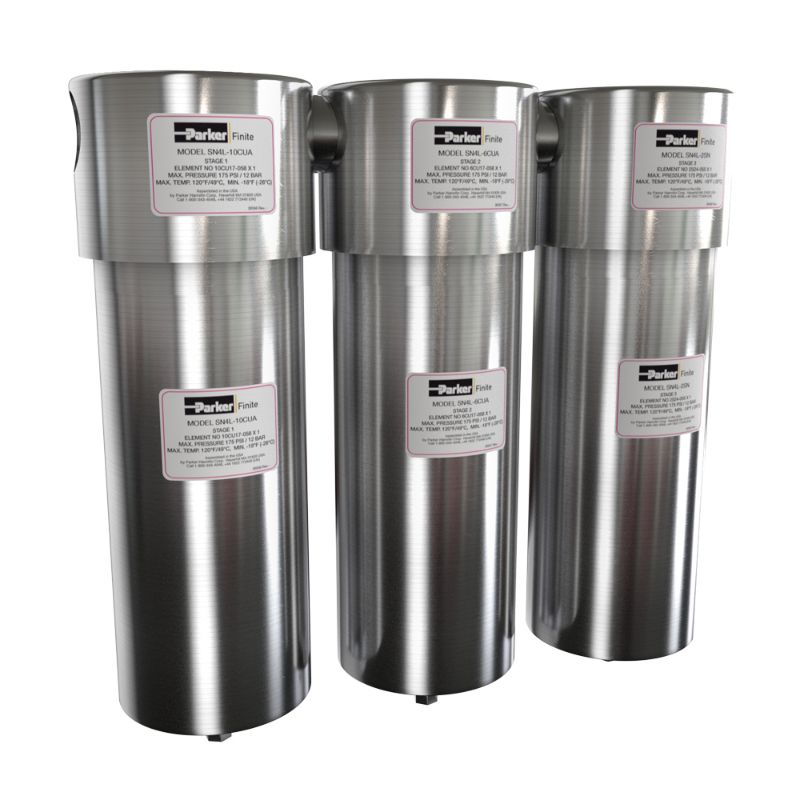

Parker 3SN2L-A1N - Finite SN 3-Stage Stainless Steel Filters for Food Contact Applications

Finite SN 3-Stage Filters for Food Contact Applications. Finite 3 Stage Stainless Steel Filters deliver up to 99.9999+% efficiency at 0.01 microns. These filters will hold up to the most demanding washdown applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3SN2L-A1N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Gas Filtration and Generation Division	Brand	Finite
Maximum Operating Temperature	175 °F	Flow Rate	63 SCFM
Micron Rating	0.01 MICRON	Filter Efficiency Rating	100 %
Maximum Operating Pressure	175 psi	Specifications Met	Automatic Drain
Bowl Type	Stainless Steel	Port Type	Female NPT
Filter Type	Coalescing Filter	Pressure Drop	4 psid (Dry)
Compatible Element	Stage 1:= 10CU10-050 X 4, Stage 2:=6CU10-050 X 4, Stage 3:=2S10-050 X 4	Material Type	Stainless Steel
Port Thread Size	1/2" 63 SCFM
