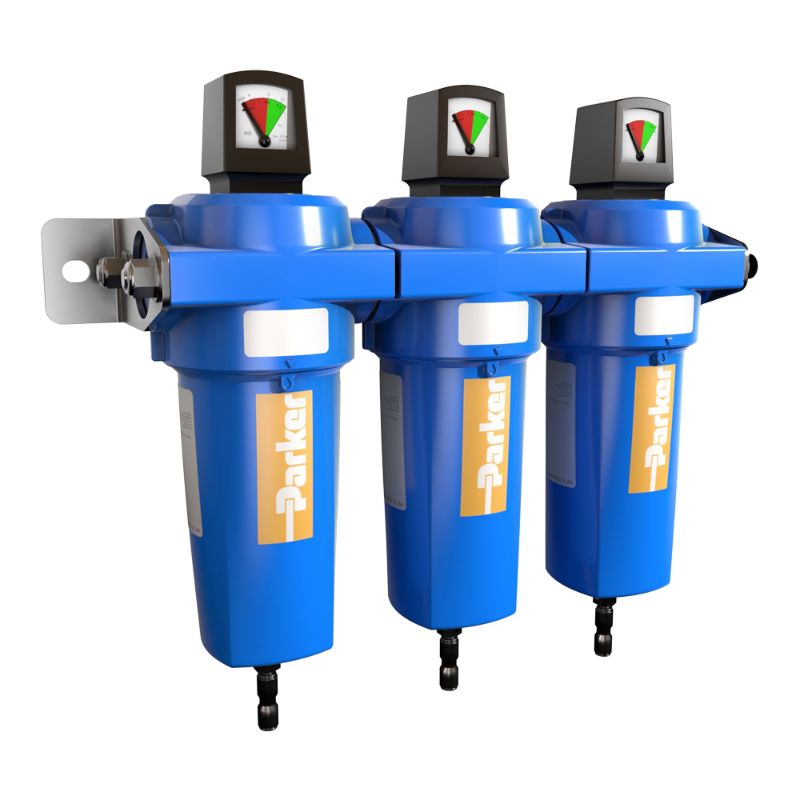

Parker 3HXN2BH-A1G - Finite HX 3-Stage Filters for Food Contact Applications

Finite HX 3-Stage Filters for Food Contact Applications. Finite 3 Stage Aluminum Filters deliver up to 99.9999+% efficiency at 0.01 microns. Finished with a durable powder coating that will hold up to the most demanding non-washdown applications.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 3HXN2BH-A1G

$1,766.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Industrial Gas Filtration and Generation Division
Brand	Finite	Maximum Operating Pressure	250 psi
Maximum Operating Temperature	175 °F	Micron Rating	0.01 MICRON
Filter Efficiency Rating	100 %	Flow Rate	50 SCFM
Specifications Met	Automatic Drain + Mounting Brackets + Differential Pressure Indicators	Bowl Type	Aluminum
Port Type	Female NPT	Filter Type	Coalescing Filter
Pressure Drop	4 psid	Compatible Element	Stage 1:= 10CHXBHK, Stage 2:=6CHXBHK, Stage 3:=2XLHXBHK
Material Type	Aluminum	Port Thread Size	1/2" 50 SCFM
