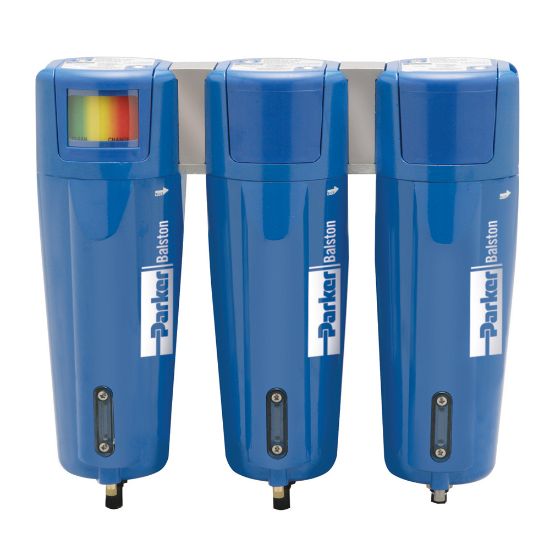

Parker 3B-2206N-3B1 - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3B-2206N-3B1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Port Size	3/4 inch	Micron Rating	0.01 MICRON
Weight	17.5 lb	Drain Port Size	1/8 inch
Width	13.5 inch	Maximum Operating Temperature	54 °C
Minimum Operating Temperature	-150 °F	Optional Accessories	Automatic Drain, DPI
Height	13 inch	Efficiency Rating	99.99 % Stage Two
Maximum Flow Rate	119 m3/min	Maximum Operating Pressure	175 psig
Compatible Element	Stage One: 5/150-19-DX; Stage Two: 5/150-19-BX; Stage Three: 5/150-19-SA	Materials of Construction	Head: Alum, Bowl: Alum, Internals: Alum, Seals: Buna-N Food Grade
Connection Type	NPT	Brand	Balston
Port Size	0.75"	Product Type	3-Stage (DX, BX, SA) Filter Assembly
