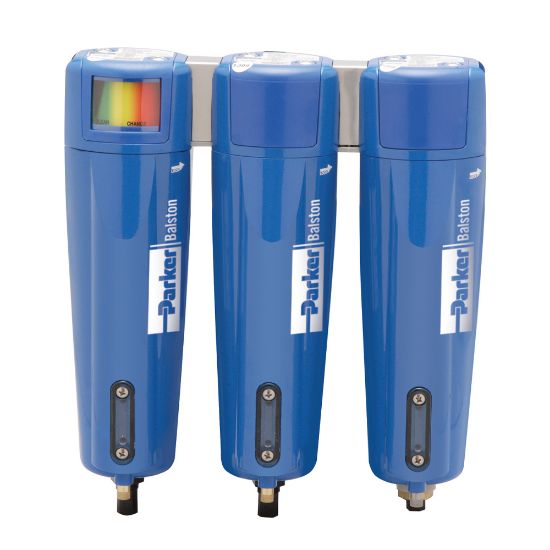

Parker 3A-2104N-3B1 - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3A-2104N-3B1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Port Size	1/2 inch	Micron Rating	0.01 MICRON
Weight	3.4 kg	Drain Port Size	1/8 inch
Minimum Operating Temperature	-100 °C	Width	254 mm
Maximum Operating Temperature	129 °F	Optional Accessories	Automatic Drain, DPI
Efficiency Rating	99.99 % Stage Two	Maximum Operating Pressure	175 psig
Height	279.4 mm	Maximum Flow Rate	66 m3/min
Compatible Element	Stage One: 5/100-18-DX; Stage Two: 5/100-18-BX; Stage Three: CI-100-25-000	Materials of Construction	Head: Alum, Bowl: Alum, Internals: Alum, Seals: Buna-N Food Grade
Connection Type	NPT	Brand	Balston
Port Size	0.5"	Product Type	3-Stage (DX, BX, Carbon) Filter Assembly
