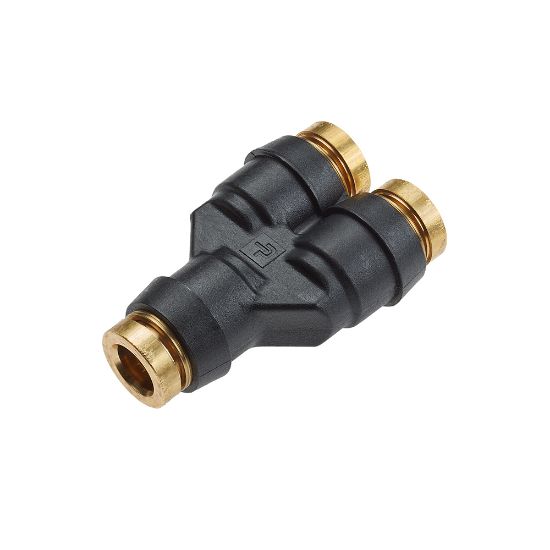

Parker 362PTC-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:	Quote Required
Partner Available:	138 In Stock

Brand Parker

Part No. 362PTC-4

$32.66

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Connection Type	NPTF	Maximum Operating Pressure	17 bar
Maximum Operating Temperature	110 °C	Dimensional Weight	0.2759 lb
O-Ring Material	Buna N	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3
Body Material	Composite	Application	Air Brakes
Collet Material	Brass	Minimum Operating Temperature	-45.5 °C
Tube Material	Stainless Steel	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Connection 3 Size	1/4"	Connection 3 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
Shape	Wye

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
