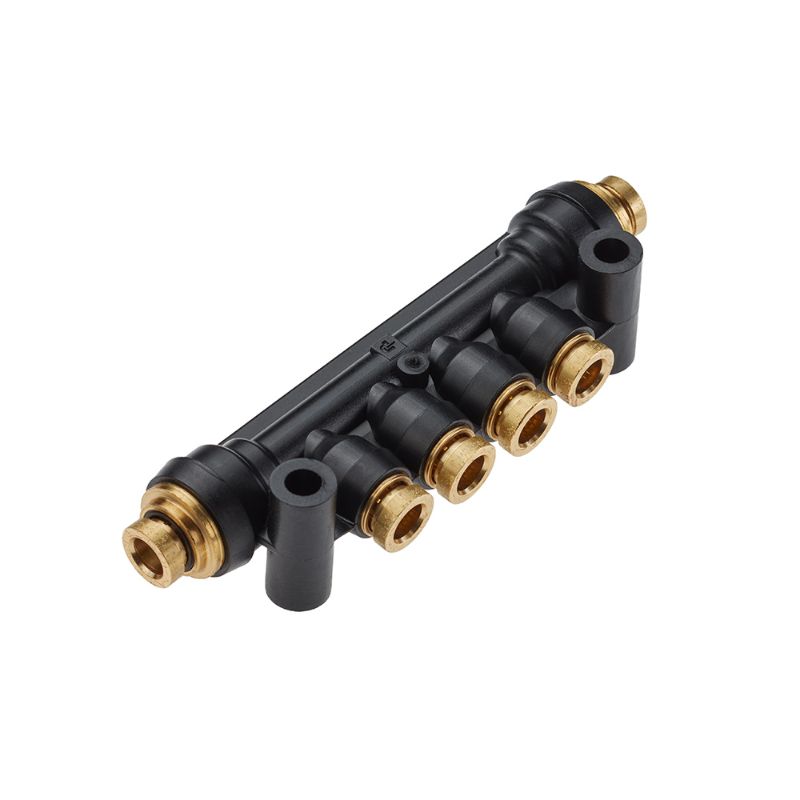

Parker 24M-4-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24M-4-4

$77.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Material	J844 Type A & B Nylon Tubing
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Application	Air Brakes
Minimum Operating Temperature	-50 °F	Maximum Operating Pressure	250 psi
Collet Material	Brass	O-Ring Material	Buna N
Maximum Operating Temperature	110 °C	Division	Fluid System Connectors Division
Connection Type	NPTF	Dimensional Weight	1.3797 lb
Body Material	Composite	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
Product Style	Manifold
