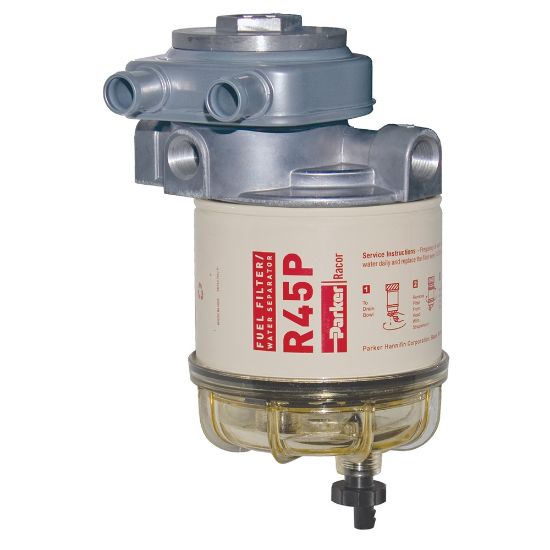

Parker 345RC1230 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 345RC1230

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 121 °C	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Filter Element Type	30 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	207.0 kPa
For Fluid Type	Diesel	Maximum Fluid Temperature	88.0 °C
Compatible Element	R45S = "2" Micron<br/>R45T = 10 Micron<br/>R45P = 30 Micron	Weight	2.5 lb / 1.1 Kg
Width	122.0 mm	Height	9.3 inch
Depth	112.0 mm	Number of Ports	2 Fuel / 2 Coolant
Clean Pressure Drop	0.1 psi	Location	North America and EMEA regions
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Integral Primer Pump Included	No Pump
Flow Rate	45 gph (170 lph)	Product Series	Diesel Spin-on 300
Port Size	3/8"-18 NPTF (SAE J476)	Heater Power Rating	12V / 200W Heater with Coolant Heat Exchanger (Diesel Only)
