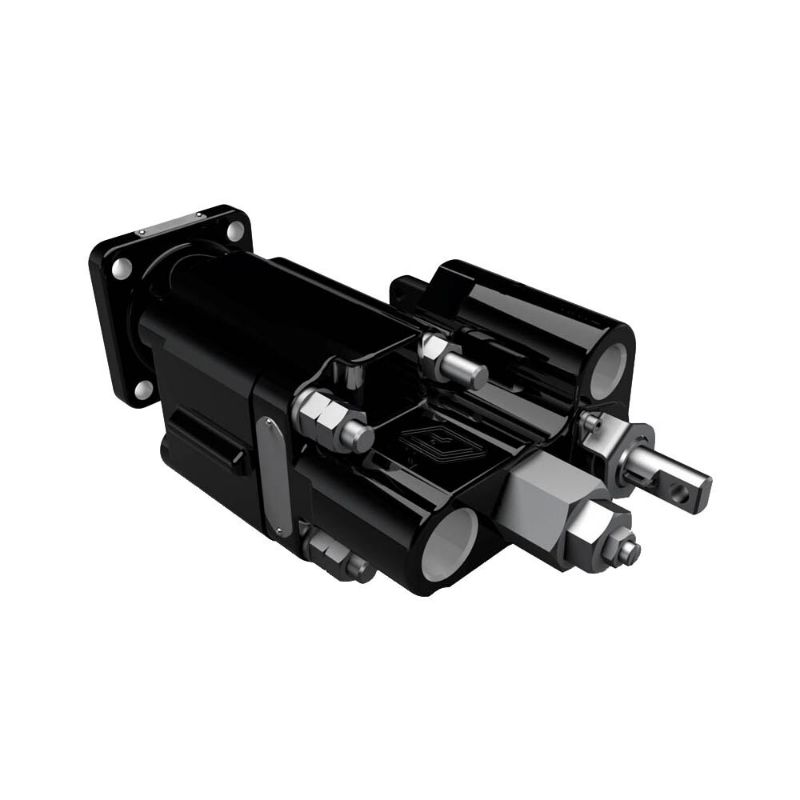

Parker 3149325229 - Cast Iron Pumps – C101/C102 Series

Parker’s C101/C102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 27.7 gpm.

Availability:	Quote Required
Partner Available:	40 In Stock

Brand Parker

Part No. 3149325229

$1,027.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Connection	NPT
Filter Included	No	Maximum Fluid Temperature	180 °F
Additional Options	n/a	Flow Rate	n/a
Division	Pump & Motor Division	Media	n/a
Port Type	Tapered Thread	Pump Type	Gear
Shaft Type	SAE	Sensor Type	n/a
Circuit Path	Open	Drain Option	No
Product Type	Hydraulic Pump Gear, Fixed Displacement	Body Material	Cast Iron
Configuration	Single	Port Location	Rear Ports
Seal Material	TEFLON	Control Method	n/a
For Fluid Type	Standard Hydraulic Fluids	Shaft Diameter	7/8 inch
Mounting Option	SAE	Maximum Flow Rate	n/a
Operating Pressure	up to 172 bar	Maximum Noise Level	n/a
Charge Pump Included	No	Radial Load Capacity	n/a
Direction of Rotation	Clockwise	Inlet Connection Size	1-1/4 inch
Thru-Drive Capability	No	Maximum Operating Speed	2400 RPM
Minimum Fluid Temperature	-20 °C	Energy Recovery Capability	No
Maximum Operating Pressure	172 bar	Maximum Kinematic Viscosity	7500 SUS
Minimum Kinematic Viscosity	50 SUS	Weight	32 kg (Max)
Displacement	up to 6.4 inch3/rev	Maximum Displacement	6.4 inch3/rev
Outlet Connection Size	NPT 1 inch (Cylinder)	Rotation	CCW
Additional Options	No Air Shift	Displacement	6.38 cu. in. / 104.5 cc
Configuration	4-BOLT SQUARE	Pressure Rating (psi)	2500 PSI

Product resources

Literature and Reference Materials
