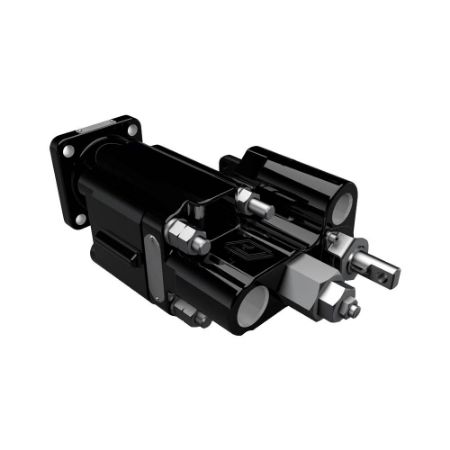

Cast Iron Pumps – C101/C102 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s C101/C102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.

Markets:
• Vocational & Municipal Equipment

Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power to weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability

Applications:
• Dump Truck
• Dump Trailer

Technical Specifications:
• Flow is 27.7 gpm (104.9 lpm)
• Displacement is 6.4 cir (104.9cc/rev)
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 94%
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load hold valve
• Integrated raise/neutral/lower valve
• Air shift valve available

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Port Connection	Filter Included	Minimum Fluid Temperature	Additional Options	Flow Rate	Division	Media	Port Type	Pump Type	Shaft Type	Sensor Type	Circuit Path	Drain Option	Product Type	Body Material	Configuration	Port Location	Seal Material	Control Method	For Fluid Type	Shaft Diameter	Mounting Option	Maximum Flow Rate	Operating Pressure	Maximum Noise Level	Charge Pump Included	Radial Load Capacity	Direction of Rotation	Inlet Connection Size	Thru-Drive Capability	Maximum Operating Speed	Maximum Fluid Temperature	Energy Recovery Capability	Maximum Operating Pressure	Maximum Kinematic Viscosity	Minimum Kinematic Viscosity	Weight	Displacement	Maximum Displacement	Outlet Connection Size	Rotation	Additional Options	Displacement	Configuration	Pressure Rating (psi)
3149310226	Quote Required	20 In Stock	$1,027.50	EA	NPT	No	0 °F	n/a	n/a	Pump & Motor Division	n/a	Tapered Thread	Fixed	SAE	n/a	Open	No	Hydraulic Pump Gear, Fixed Displacement	Cast Iron	Single	Rear Ports	TEFLON	n/a	Standard Hydraulic Fluids	1 inch	DIN	n/a	up to 2500 psi	n/a	No	n/a	Clockwise	NPT	No	2400 RPM	80 °C	No	172 bar	7500 SUS	50 SUS	32 kg (Max)	up to 105 cm3/rev	6.4 inch3/rev	NPT 1 inch (Cylinder)	BI	No Air Shift	6.38 cu. in. / 104.5 cc	4-BOLT SQUARE	2500 PSI
3149325018	Quote Required	Quote Required	TBD		NPT	No	-20 °C	n/a	n/a	Pump & Motor Division	n/a	Tapered Thread	Gear	SAE	n/a	Open	No	C102	Cast Iron	Single	Rear Ports	TEFLON	n/a	Standard Hydraulic Fluids	7/8 inch	SAE	n/a	up to 172 bar	n/a	No	n/a	Counterclockwise	1-1/4 inch	No	2400 RPM	80 °C	No	2500 psi	7500 SUS	50 SUS	32 kg (Max)	up to 105 cm3/rev	105 cm3/rev	NPT 1 inch (Cylinder)	CW	Air Shift Installed	6.38 cu. in. / 104.5 cc	4-BOLT SQUARE	2500 PSI
3149325227	Quote Required	42 In Stock	$1,138.50	EA	NPT	No	0 °F	n/a	n/a	Pump & Motor Division	n/a	Tapered Thread	Fixed	SAE "B" 13T	n/a	Open	No	Hydraulic Pump Gear, Fixed Displacement	Cast Iron	Single	Rear Ports	Buna-N	n/a	Phosphate-ester	7/8 inch	SAE	n/a	up to 2500 psi	n/a	No	n/a	Counterclockwise	NPT	No	2400 RPM	180 °F	No	172 bar	7500 SUS	50 SUS	70 lb (Max)	up to 6.4 inch3/rev	105 cm3/rev	NPT 1 inch (Tank-plugged)	CCW	Air Shift Installed	6.38 cu. in. / 104.5 cc	4-BOLT SQUARE	2500 PSI
3149325229	Quote Required	40 In Stock	$1,027.50	EA	NPT	No	-20 °C	n/a	n/a	Pump & Motor Division	n/a	Tapered Thread	Gear	SAE	n/a	Open	No	Hydraulic Pump Gear, Fixed Displacement	Cast Iron	Single	Rear Ports	TEFLON	n/a	Standard Hydraulic Fluids	7/8 inch	SAE	n/a	up to 172 bar	n/a	No	n/a	Clockwise	1-1/4 inch	No	2400 RPM	180 °F	No	172 bar	7500 SUS	50 SUS	32 kg (Max)	up to 6.4 inch3/rev	6.4 inch3/rev	NPT 1 inch (Cylinder)	CCW	No Air Shift	6.38 cu. in. / 104.5 cc	4-BOLT SQUARE	2500 PSI
3149325234	Quote Required	Quote Required	TBD		NPT	No	0 °F	n/a	n/a	Pump & Motor Division	n/a	Tapered Thread	Gear	SAE	n/a	Open	No	Hydraulic Pump Gear, Fixed Displacement	Cast Iron	Single	Rear Ports	Buna-N	n/a	Standard Hydraulic Fluids	7/8 inch	SAE	n/a	up to 2500 psi	n/a	No	n/a	Counterclockwise	NPT	No	2400 RPM	80 °C	No	2500 psi	7500 SUS	50 SUS	32 kg (Max)	up to 6.4 inch3/rev	105 cm3/rev	NPT 1 inch (Tank-plugged)	CW	No Air Shift	6.38 cu. in. / 104.5 cc	4-BOLT SQUARE	2500 PSI
