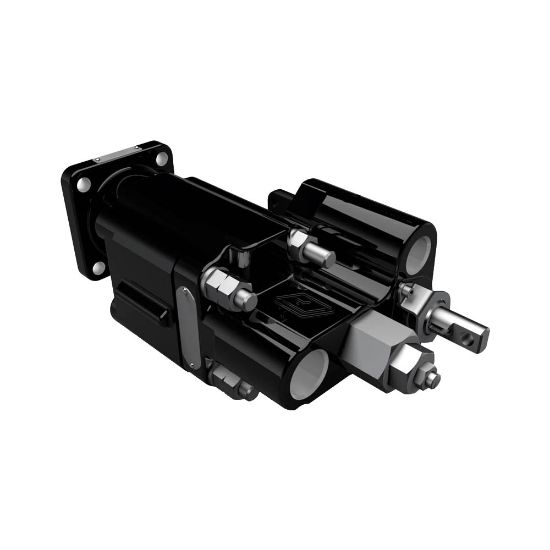

Parker 3149325018 - Cast Iron Pumps – C101/C102 Series

Parker’s C101/C102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 27.7 gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3149325018

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Connection	NPT	Filter Included	No
Additional Options	n/a	Flow Rate	n/a
Division	Pump & Motor Division	Media	n/a
Port Type	Tapered Thread	Pump Type	Gear
Shaft Type	SAE	Sensor Type	n/a
Circuit Path	Open	Drain Option	No
Body Material	Cast Iron	Configuration	Single
Port Location	Rear Ports	Seal Material	TEFLON
Control Method	n/a	For Fluid Type	Standard Hydraulic Fluids
Shaft Diameter	7/8 inch	Mounting Option	SAE
Maximum Flow Rate	n/a	Operating Pressure	up to 172 bar
Maximum Noise Level	n/a	Charge Pump Included	No
Radial Load Capacity	n/a	Direction of Rotation	Counterclockwise
Inlet Connection Size	1-1/4 inch	Thru-Drive Capability	No
Maximum Operating Speed	2400 RPM	Maximum Fluid Temperature	80 °C
Minimum Fluid Temperature	-20 °C	Energy Recovery Capability	No
Maximum Operating Pressure	2500 psi	Maximum Kinematic Viscosity	7500 SUS
Minimum Kinematic Viscosity	50 SUS	Weight	32 kg (Max)
Displacement	up to 105 cm3/rev	Product Type	C102
Maximum Displacement	105 cm3/rev	Outlet Connection Size	NPT 1 inch (Cylinder)
Rotation	CW	Additional Options	Air Shift Installed
Displacement	6.38 cu. in. / 104.5 cc	Configuration	4-BOLT SQUARE
Pressure Rating (psi)	2500 PSI
